01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

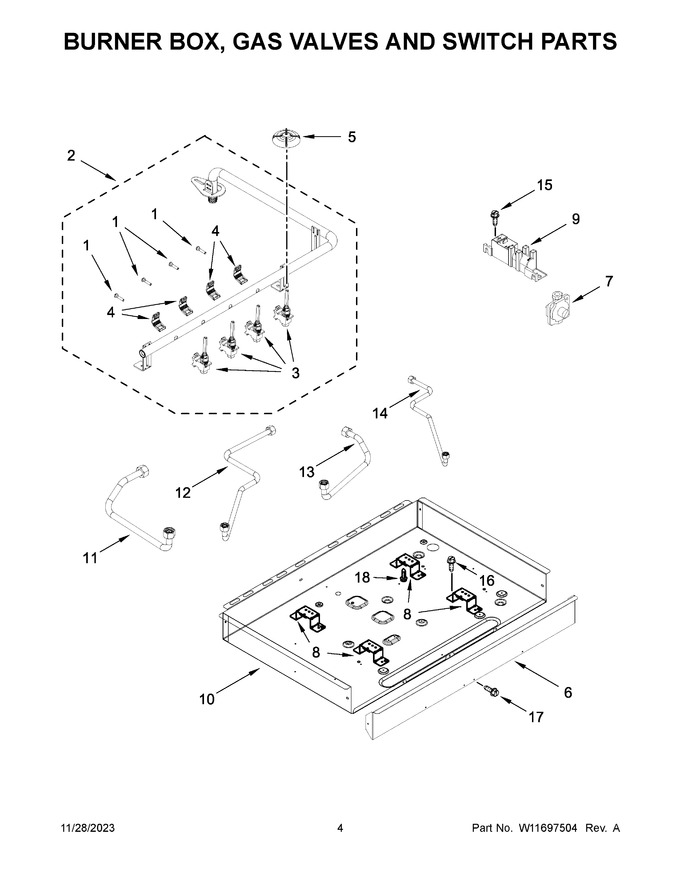

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 11.84
2	W11702870		Manifold Assembly   (Replaces: W11573986)		Appelez-nous	-
3	W11702872		Valve, Single (left Front And Right Rear)   (Replaces: W11629615)				$ 31.38
4	8287055		Bracket, Single Valve				$ 76.46
5	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
6	W11703067		Panel, Front   (Replaces: W11620860)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 197.04
8	W11703070		Bracket, Orifice Holder   (Replaces: W11566469)		Appelez-nous	-
9	W11693498		Module, Spark   (Replaces: W11349967)				$ 105.71
10	ARI55514D8BCAB29AE100450EFDED77D6CF		Box, Burner (not Serviced)		Appelez-nous	-
11	W11703072		Tube, Gas (left Front)   (Replaces: W11573969)		Appelez-nous	-
12	W11703073		Tube, Gas (left Rear)   (Replaces: W11573970)		Appelez-nous	-
13	W11703074		Tube, Gas (right Front)   (Replaces: W11573974)		Appelez-nous	-
14	W11703344		Tube, Gas (right Rear)   (Replaces: W11573971)		Appelez-nous	-
15	7101P42660		Screw		Appelez-nous	-
16	W10443110		Screw			Immediately	$ 15.25
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
18	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 14.76
3A	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 30.33
3B	W11703063		Valve, Single (right Front)   (Replaces: W11629617)				$ 30.33
NI	W10685483		Griddle				$ 110.88
