01 - Cover Sheet

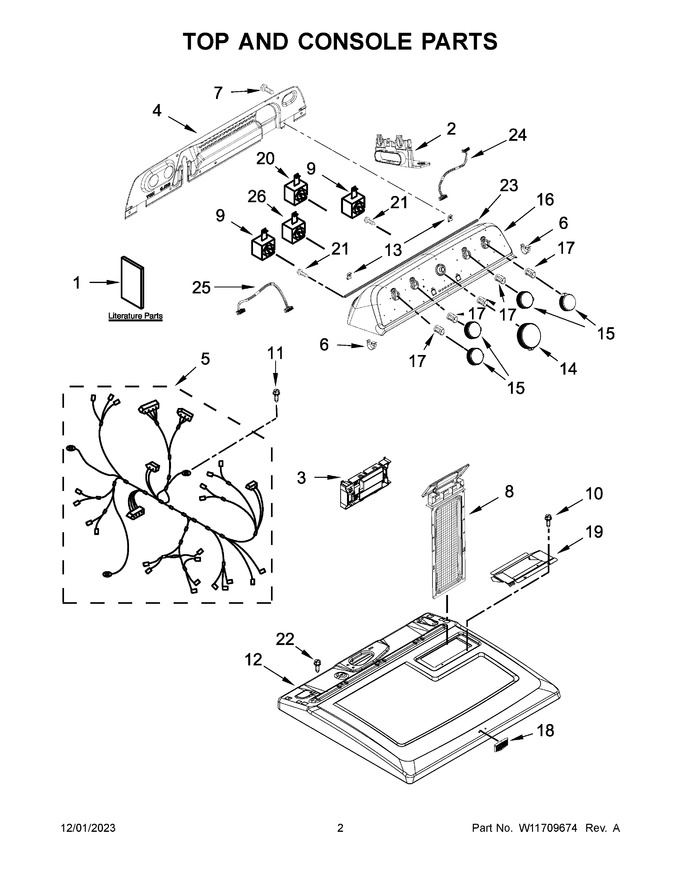

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11555817 | Owners Manual |
|
- | |||||
| 2 | W11627417 | Connector, Service Standalone (Replaces: W11438904) |
|
$ 25.63 | |||||
| 3 | W11805874 | Appliance Control Unit (acu) (Replaces: W11606408) |
|
$ 285.71 | |||||
| 4 | W10775189 | Panel, Rear |
|
$ 390.13 | |||||
| 5 | W11627563 | Harness, Main (Replaces: W11437790) |
|
$ 253.61 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP681414 | Screw (Replaces: 3390663) |
|
Immediately | $ 8.47 | ||||
| 8 | W11633115 | Lint Screen (gray) (Replaces: W11564882) |
|
$ 80.23 | |||||
| 9 | W11168256 | Switch, Rotary Encoder (2 Position) (Replaces: W10414381) |
|
Immediately | $ 219.11 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 12 | W11633116 | Top (black) (Replaces: W11564863) |
|
$ 286.88 | |||||
| 13 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 14 | W11675852 | Assembly, Control Knob (knob, Large) (Replaces: W11328381) |
|
Immediately | $ 29.75 | ||||
| 15 | W11625514 | Knob, Small (Replaces: W11398762) |
|
Immediately | $ 36.87 | ||||
| 16 | W11755508 | Assembly, Console (gray) (Replaces: W11680979) |
|
$ 255.36 | |||||
| 17 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 18 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 19 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 20 | WPW10414397 | Switch, Rotary Encoder (3 Position) (Replaces: W10414397) |
|
$ 136.10 | |||||
| 21 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 22 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 23 | W11721376 | Seal, Console (Replaces: W10726632) |
|
- | |||||
| 24 | W11486550 | Harness, Upper Encoder Rs |
|
$ 68.66 | |||||
| 25 | W11437795 | Harness, Upper Encoder |
|
$ 66.35 | |||||
| 26 | WPW10414398 | Switch, Rotary Encoder (4 Position) (Replaces: W10414398) |
|
$ 199.56 | |||||
| 1A | W11495041 | Tech Sheet |
|
- | |||||
| 1B | W11425775 | Quick Start Guide |
|
- |
