02 - Cooktop, Burner And Grate Parts

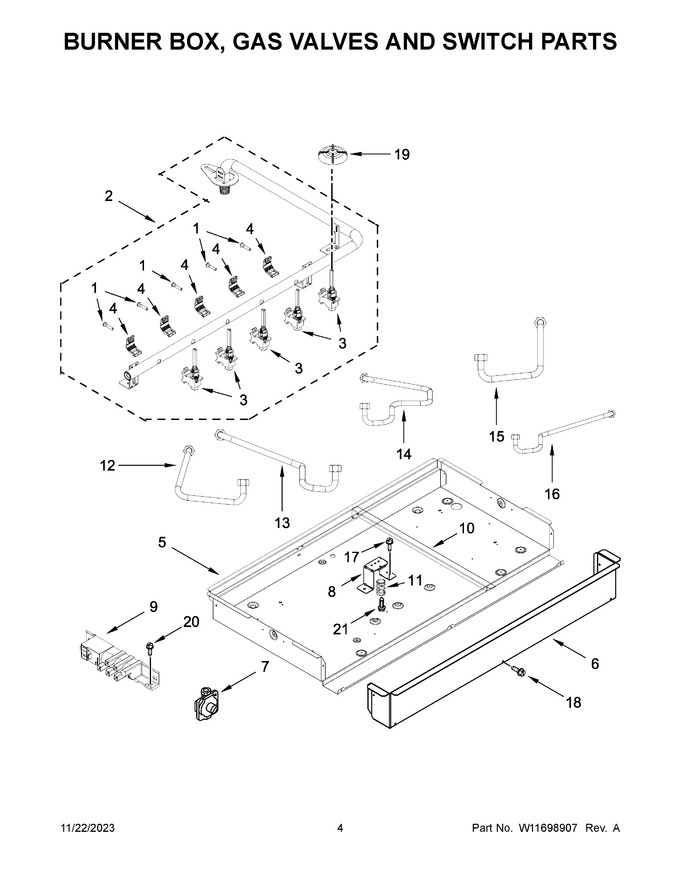

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 11.84
2	W11704457		Manifold Assembly   (Replaces: W11576647)		Appelez-nous	-
3	W11703063		Valve, Single (right Front)   (Replaces: W11629617)				$ 30.33
4	8287055		Bracket, Single Valve				$ 76.46
5	ARI55514D8BCAB29AE100450EFDED77D6CF		Box, Burner (not Serviced)		Appelez-nous	-
6	W11704458		Panel, Front   (Replaces: W11596124)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 197.04
8	W11704162		Bracket, Orifice Holder   (Replaces: W11596768)		Appelez-nous	-
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 96.65
10	W11704370		Rail, Cooktop Reinforcement   (Replaces: W11566318)		Appelez-nous	-
11	W10736113		Spring, Orifice Holder		Appelez-nous	-
12	W11704365		Tubing, Gas Burner (left Front)   (Replaces: W11592380)		Appelez-nous	-
13	W11704619		Tubing, Gas Burner (left Rear)   (Replaces: W11592379)		Appelez-nous	-
14	W11704367		Tubing, Gas Burner (center)   (Replaces: W11592377)		Appelez-nous	-
15	W11704368		Tubing, Gas Burner (right Front)   (Replaces: W11592373)		Appelez-nous	-
16	W11704622		Tubing, Gas Burner (right Rear)   (Replaces: W11592376)		Appelez-nous	-
17	W10443110		Screw			Immediately	$ 15.25
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
19	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 20.30
20	7101P42660		Screw		Appelez-nous	-
21	W11704453		Screw   (Replaces: W11691929)		Appelez-nous	-
3A	W11702872		Valve, Single (left Front And Right Rear)   (Replaces: W11629615)				$ 31.38
3B	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 30.33
NI	WA906B		Scraper, Cooktop			Immediately	$ 5.40
NI	W10216179		Ring, Wok				$ 26.46
