Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12033501 Brkt-roller Appelez-nous -
22 M0286708 Nut, Speed Special Order $ 47.85

32 12034201 Roller-cabinet Appelez-nous -
42 M1252901 Pin-pivot Appelez-nous -
52 M0273801 Ring-retaining Appelez-nous -
113 C8971903 Tunnel, Heat Exchanger Appelez-nous -
131 12034002 Funnel-drain Appelez-nous -
141 12034401 Gasket-funnel Appelez-nous -
193 12114601 Tunnel-cut Wire Appelez-nous -
195 M0322202 Tie Wire Appelez-nous -
203 A3187703 Tunnel, Air Appelez-nous -
224 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

225 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

234 12115101 Clamp, Tube Appelez-nous -
245 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 8.17

301 WPB8381501 Gasket, Drain Tube   (Replaces: B8381501) Special Order $ 7.78

375 A4554806 Snap Bushing Appelez-nous -
401 M0273301 Clip-retaining Appelez-nous -
444 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 7.30

554 12187701 Cover-ht Ex Appelez-nous -
875 12405602 Harness, Cabinet Appelez-nous -
924 W11176463 Elbow, Fill Tube   (Replaces: 10463201) In-Stock Immediately $ 119.86

1255 10916507 Cord, Power Appelez-nous -
1321 12075003 Motor, Ref Fan (d.c.) Special Order $ 136.78

1801 12062101 Assy, Roller Brkt Appelez-nous -
1811 M1200006 Cotter Pin K Appelez-nous -
1821 M1200203 Pin-clevis Appelez-nous -
1831 M0295308 Nut, Rivet Appelez-nous -
1851 WP3400527 Screw   (Replaces: M0267153) Special Order $ 8.07

1861 M0204339 Screw Bolt K Appelez-nous -
1871 10093305 Screw-mach Appelez-nous -
1881 WP489128 Screw   (Replaces: M0220417) Special Order $ 11.40

1891 12131801 Serpentine, Drn Pan Appelez-nous -
2101 12070801 Valve, Water Appelez-nous -
2111 W10823511 Tube, Plastic   (Replaces: B5705323) In-Stock Immediately $ 32.41

2121 12071201 Clip-drain Loop Appelez-nous -
2141 12071102 Brkt, Shipping Appelez-nous -
2151 12150601 Foot, Leveling Appelez-nous -
2161 12071302 Pan, Drain Appelez-nous -
2171 12143901 Rail, Pan R Appelez-nous -
2251 WP627018 Nut, Sleeve   (Replaces: M0753001) Special Order $ 11.51

2281 12143902 Rail, Pan L Appelez-nous -
2291 A1055101 Spring, Antikink Appelez-nous -
2331 12143801 Angle, Drain Pan Appelez-nous -
2424 A3189370 Gasket-foam Appelez-nous -
3151 A4539601 Pop Rivet Appelez-nous -
3154 A4539601 Pop Rivet Appelez-nous -
3354 M0102303 Clamp Appelez-nous -
3651 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

3705 M0102804 Clamp Appelez-nous -
3741 5149-P Screw,no.8-32 X 1-1/4 Fl Hd Scre Appelez-nous -
3751 WP488130 Nut-keps   (Replaces: M0280801) Special Order $ 7.32

3761 12404801 Brkt, Fan Motor Appelez-nous -
NI WPA3223101 Insert, Plastic Tube   (Replaces: A3223101) In-Stock Immediately $ 8.21


    View Diagram in Separate Window     Print Icon   Print Part List

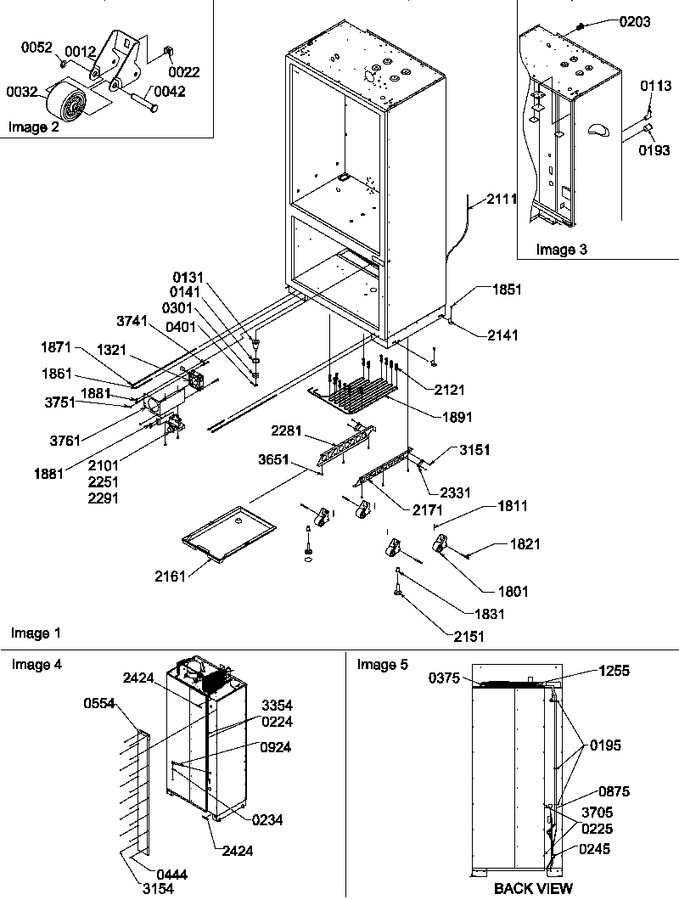

Diagram for B136CAL3 (BOM: P1318401W)
