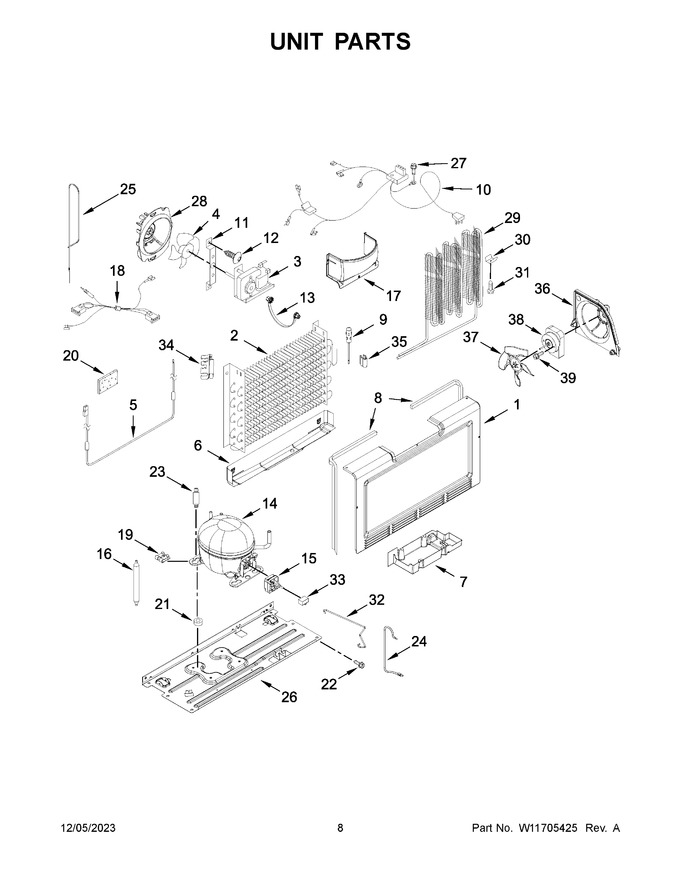

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11551256 | Cover, Evaporator (Replaces: W10574307) |
|
$ 118.69 | |||||
| 2 | W11572047 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11490402) |
|
Immediately | $ 139.97 | ||||
| 3 | W11499658 | Motor, Fan (Replaces: W11340536) |
|
Immediately | $ 61.40 | ||||
| 4 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 5 | W11562215 | Heater, Defrost (Replaces: W11340898) |
|
Immediately | $ 89.77 | ||||
| 6 | W11562216 | Shield, Heat (Replaces: W11483529) |
|
$ 44.33 | |||||
| 7 | W10574291 | Pan, Evaporator Drain |
|
$ 113.73 | |||||
| 8 | WPW10574368 | Gasket, Evaporator Cover (Replaces: W10574305) |
|
$ 8.33 | |||||
| 9 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 112.83 | ||||
| 10 | W11744514 | Unit Harness (includes Power Cord) (Replaces: W11526233) |
|
Immediately | $ 92.24 | ||||
| 11 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 12 | W11233072 | Screw (Replaces: W11546547) |
|
Immediately | $ 14.02 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.91 | |||||
| 14 | W11547313 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332031) |
|
Immediately | $ 517.03 | ||||
| 15 | W11524472 | Device, Start (Replaces: W11359985) |
|
Immediately | $ 30.90 | ||||
| 16 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 17 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| 18 | W11741458 | Harness, Evaporator Fan (Replaces: W11435965) |
|
$ 60.88 | |||||
| 19 | W10697017 | Clip, Retaining |
|
- | |||||
| 20 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 21 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 22 | 3400524 | Screw (Replaces: W10142287) |
|
$ 12.65 | |||||
| 23 | W11572046 | Screw (Replaces: W10720825) |
|
- | |||||
| 24 | W11591093 | Tube, Suction |
|
$ 61.22 | |||||
| 25 | ARIDDD216F8CD72D0A11163AD4B6C4376CA | Exchanger, Heat (not Serviced) |
|
- | |||||
| 26 | W10574497 | Pan, Compressor |
|
$ 161.75 | |||||
| 27 | 180257102 | Screw |
|
- | |||||
| 28 | W10574469 | Shroud, Evaporator Fan |
|
$ 36.06 | |||||
| 29 | W11507065 | Condenser Assembly (also Order The Following Lokring Parts) (Replaces: W10574289) |
|
Immediately | $ 275.54 | ||||
| 30 | W10683556 | Clip, Condenser (Replaces: W10248621) |
|
$ 18.46 | |||||
| 31 | W11544659 | Screw (Replaces: W10142294) |
|
$ 13.67 | |||||
| 32 | W11524474 | Strap, Bale (Replaces: W11379613) |
|
- | |||||
| 33 | W11631831 | Run Capacitor (Replaces: W11584490) |
|
$ 62.10 | |||||
| 34 | W11452250 | Bracket, Evaporator |
|
- | |||||
| 35 | W11546684 | Clip, Evaporator Thermistor (Replaces: W11437914) |
|
Immediately | $ 11.74 | ||||
| 36 | W11605794 | Bracket, Condenser Fan (Replaces: W11509373) |
|
Immediately | $ 78.59 | ||||
| 37 | WPW10139483 | Blade, Condenser Fan (Replaces: W10139483) |
|
$ 95.07 | |||||
| 38 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 39 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 14A | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 24.65 | ||||
| 14B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 25.84 | ||||
| 14C | W11506622 | 6.35 Nk Al 00 (charging Tube To Compressor) |
|
Immediately | $ 31.62 | ||||
| 14D | W11506635 | Tube, Charging (1/4 In W/ Schrader Valve) |
|
Immediately | $ 35.27 | ||||
| 16A | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 20.95 | ||||
| 16B | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Drier) |
|
Immediately | $ 46.27 | ||||
| 29A | W11578570 | 7/4.5 Nr Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 61.23 | ||||
| 29B | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 20.95 | ||||
| 2A | W11504450 | 4/1.8 Nr Ms 00 (capillary Tube To Evaporator) |
|
Immediately | $ 44.30 | ||||
| 2B | W11504420 | 8/6 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 24.65 | ||||
| NI | ARIC8712347CE1562AEF84A31A01CCD36A0 | Refrigerant Charge 50 Grams (r600a) |
|
- |
