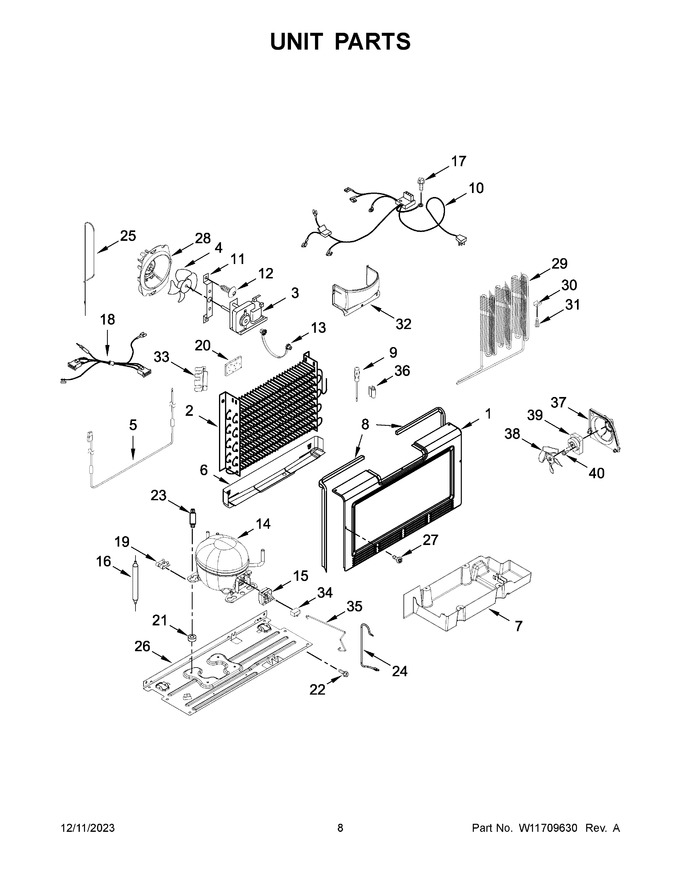

05 - Unit Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11551256		Cover, Evaporator   (Replaces: W10574307)				$ 124.62
2	W11572047		Evaporator (also Order The Following Lokring Parts)   (Replaces: W11490402)			Immediately	$ 139.97
3	W11499658		Motor, Fan   (Replaces: W11340536)			Immediately	$ 61.40
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 43.41
5	W11562215		Heater, Defrost   (Replaces: W11340898)			Immediately	$ 89.77
6	W11562216		Shield, Heat   (Replaces: W11483529)				$ 46.55
7	W10574291		Pan, Evaporator Drain				$ 119.42
8	WPW10574368		Gasket, Evaporator Cover   (Replaces: W10574305)				$ 8.75
9	WPW10384183		Thermistor   (Replaces: W10384183)			Immediately	$ 118.47
10	W11744514		Unit Harness (includes Power Cord)   (Replaces: W11526233)			Immediately	$ 96.85
11	13058002		Clip, Evaporator Motor				$ 12.66
12	W11233072		Screw   (Replaces: W11546547)			Immediately	$ 14.72
13	W11690160		Grommet, Fan Motor   (Replaces: W10150583)				$ 8.31
14	W11547313		Compressor (also Order The Following Lokring Parts)   (Replaces: W11332031)			Immediately	$ 517.03
15	W11524472		Device, Start   (Replaces: W11359985)			Immediately	$ 32.45
16	W11109499		Drier (service Drier Without Dye) (also Order The Following Lokring Parts)   (Replaces: W10805035)			Immediately	$ 39.12
17	180257102		Screw		Appelez-nous	-
18	W11741458		Harness, Evaporator Fan   (Replaces: W11435965)				$ 63.92
19	W10697017		Clip, Retaining		Appelez-nous	-
20	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
21	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
22	3400524		Screw   (Replaces: W10142287)				$ 13.28
23	W11572046		Screw   (Replaces: W10720825)		Appelez-nous	-
24	W11591093		Tube, Suction				$ 64.28
25	ARIDDD216F8CD72D0A11163AD4B6C4376CA		Exchanger, Heat (not Serviced)		Appelez-nous	-
26	W10574278		Pan, Compressor				$ 140.77
27	W11546558		Screw (white)				$ 13.22
28	W10574469		Shroud, Evaporator Fan				$ 37.86
29	W11507065		Condenser Assembly (also Order The Following Lokring Parts)   (Replaces: W10574289)			Immediately	$ 289.32
30	W10683556		Clip, Condenser   (Replaces: W10248621)				$ 19.38
31	W11544659		Screw   (Replaces: W10142294)				$ 14.35
32	W10574581		Cover, Evaporator Fan		Appelez-nous	-
33	W11452250		Bracket, Evaporator		Appelez-nous	-
34	W11631831		Run Capacitor   (Replaces: W11584490)				$ 65.21
35	W11524474		Strap, Bale   (Replaces: W11379613)		Appelez-nous	-
36	W11546684		Clip, Evaporator Thermistor   (Replaces: W11437914)			Immediately	$ 12.33
37	W11605794		Bracket, Condenser Fan   (Replaces: W11509373)			Immediately	$ 82.52
38	WPW10139483		Blade, Condenser Fan   (Replaces: W10139483)				$ 99.82
39	W11127829		Motor, Condenser Fan   (Replaces: W10909387)			Immediately	$ 185.05
40	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
14A	W11504420		8/6 Nr Ms 00 (suction Line To Evaporator)			Immediately	$ 25.88
14B	W11504431		7/5 Nr Ms 00 (discharge Tube To Compressor)			Immediately	$ 27.13
14C	W11506622		6.35 Nk Al 00 (charging Tube To Compressor)			Immediately	$ 33.20
14D	W11506635		Tube, Charging (1/4 In W/ Schrader Valve)			Immediately	$ 37.03
16A	W11506623		5 Nk Ms 00 (discharge Tube To Condenser)			Immediately	$ 22.00
16B	W11504448		5/1.8 Nr Al 00 (capillary Tube To Drier)			Immediately	$ 48.58
29A	W11578570		7/4.5 Nr Ms 00 (discharge Tube To Condenser)			Immediately	$ 64.29
29B	W11506623		5 Nk Ms 00 (discharge Tube To Condenser)			Immediately	$ 22.00
2A	W11504450		4/1.8 Nr Ms 00 (capillary Tube To Evaporator)			Immediately	$ 46.52
2B	W11504420		8/6 Nr Ms 00 (suction Line To Evaporator)			Immediately	$ 25.88
NI	ARI8F8B2CB7C36118F5202FD746085E8C35		Refrigerant Charge 49 Grams (r600a)		Appelez-nous	-
