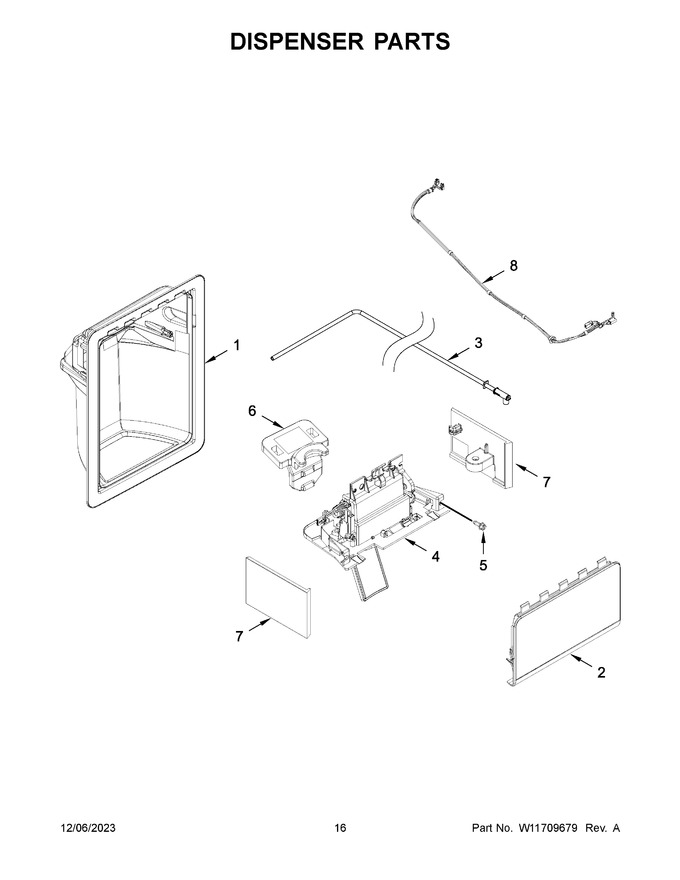

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI0820F7799426DB23CC858392159B72FE		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11203289		Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10898320)		Appelez-nous	-
3	W11163765		Assembly, Water Fitting   (Replaces: W10898317)			Immediately	$ 166.06
4	W11678840		Assembly, Separator (black)   (Replaces: W11604219)				$ 191.13
5	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
6	W11397167		Retainer, Separator Hose   (Replaces: W11039857)			Immediately	$ 23.34
7	W11311799		Cover, Dispenser Front (black (left Hand))   (Replaces: W11183317)				$ 102.72
8	W10898319		Harness, Wire				$ 150.84
2A	W11203376		Desert Sparkle   (Replaces: W10922070)		Appelez-nous	-
4A	W11744732		Assembly, Separator (biscuit)   (Replaces: W11604217)		Appelez-nous	-
7A	W11311903		Cover, Dispenser Front (biscuit (left Hand))   (Replaces: W11183316)		Appelez-nous	-
7B	W11311905		Cover, Dispenser Front (biscuit (right Hand))   (Replaces: W11183312)		Appelez-nous	-
7C	W11311800		Cover, Dispenser Front (black (right Hand))   (Replaces: W11183313)			Immediately	$ 106.31

    View Diagram in Separate Window       Print Part List
