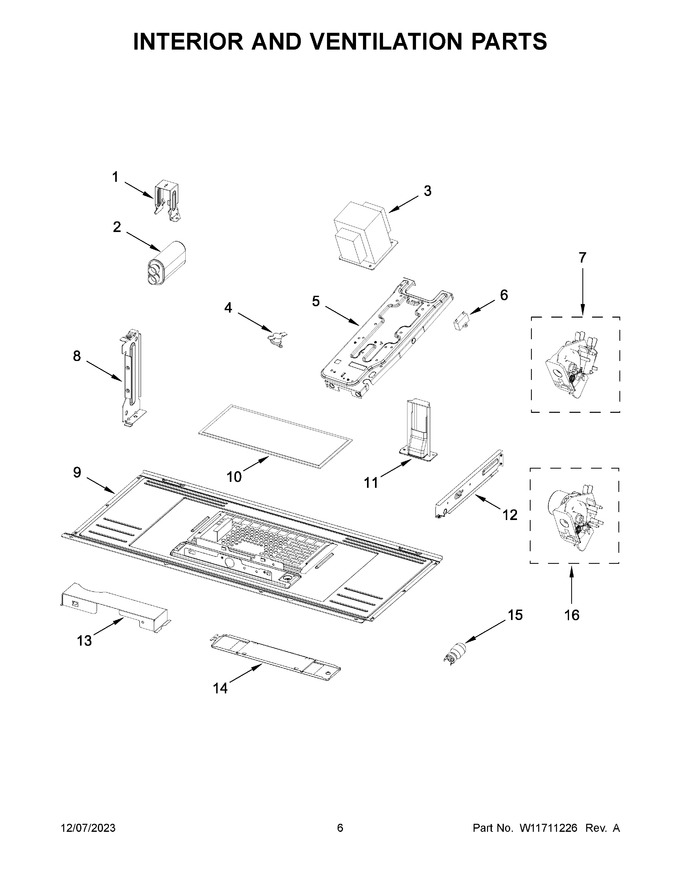

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11265233 | Bracket, Capacitor |
|
- | |||||
| 2 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 120.92 | ||||
| 3 | W11485075 | Transformer, High Voltage |
|
$ 158.90 | |||||
| 4 | W10668273 | Thermostat, Cavity |
|
Immediately | $ 25.89 | ||||
| 5 | W11268348 | Plate, Chassis |
|
- | |||||
| 6 | W11405832 | Capacitor, Hood Motor |
|
$ 27.24 | |||||
| 7 | W11182140 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169310) |
|
Immediately | $ 42.89 | ||||
| 8 | W10313275 | Bracket, Top Cavity |
|
$ 33.92 | |||||
| 9 | W11295401 | Panel, Bottom |
|
$ 128.29 | |||||
| 10 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 14.69 | ||||
| 11 | W10770968 | Plate, Waterproof |
|
$ 61.77 | |||||
| 12 | W11295335 | Support, Ntc |
|
- | |||||
| 13 | W11361503 | Reflector, Lamp |
|
- | |||||
| 14 | W11295403 | Cover, Lamp |
|
- | |||||
| 15 | W11520384 | Lamp, Halogen |
|
Immediately | $ 10.41 | ||||
| 16 | W11182141 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169312) |
|
Immediately | $ 31.26 |
