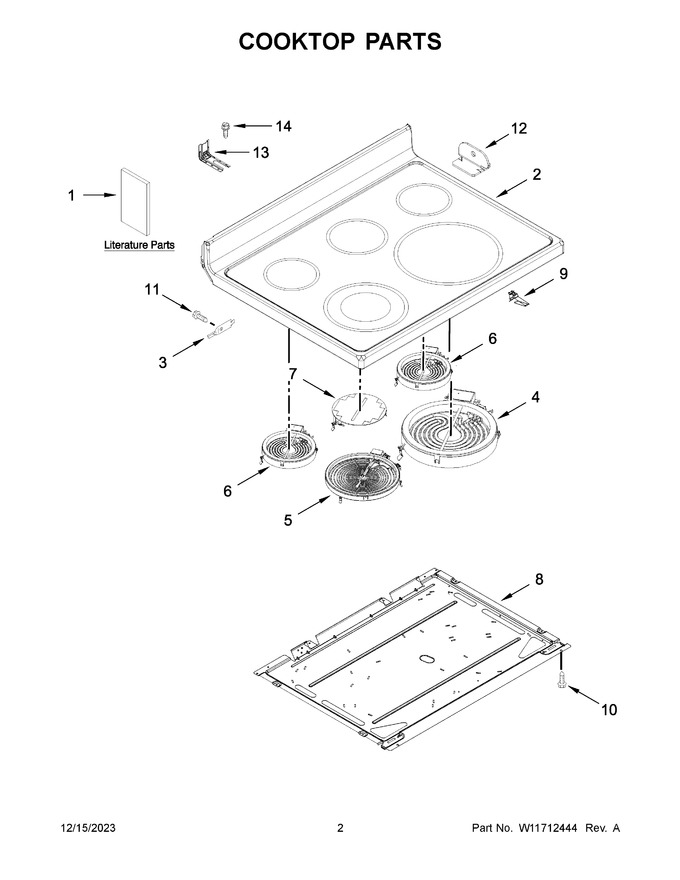

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual		Appelez-nous	-
2	W10691697		Cooktop (white)   (Replaces: W10655914)				$ 590.94
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 341.96
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 386.10
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 225.62
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W10607641		Bracket, Cooktop (left)				$ 33.52
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
14	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W11503321		Tech Sheet		Appelez-nous	-
1B	W11469630		Quick Start Guide		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	W11212183		Harness, Sensor				$ 235.64
NI	W11188418		Harness, Cooktop (left)				$ 223.37
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 214.26
NI	W11451788		Main Harness				$ 297.60
