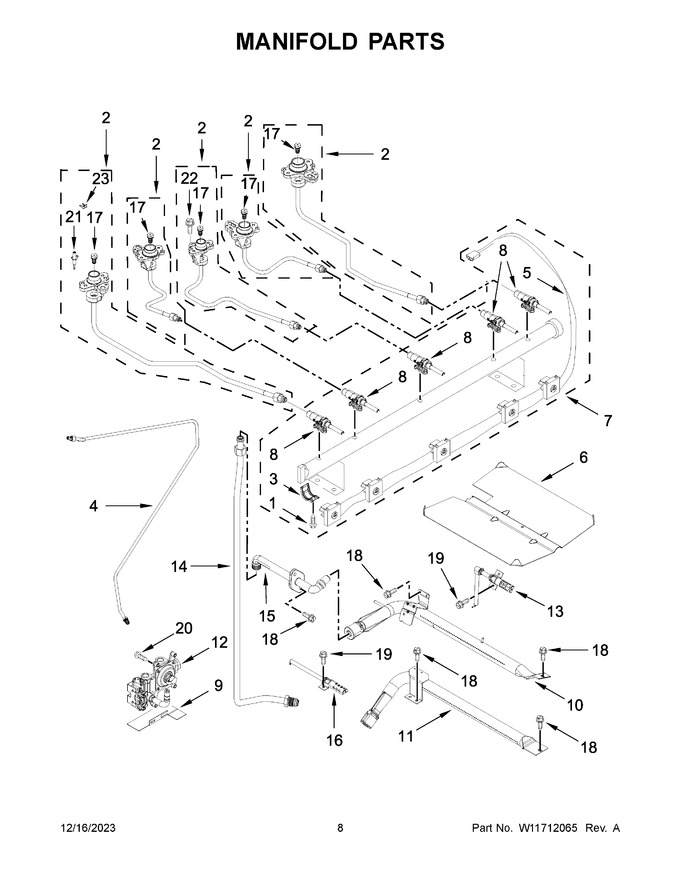

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W11557814		Orifice Holder Assembly (18k) (left Front)   (Replaces: W11459263)		Appelez-nous	-
3	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
4	W10510125		Tubing, Main Supply				$ 218.65
5	W10906162		Switch, 5 Burner Manifold Harness   (Replaces: W10783317)				$ 189.39
6	3601P33645		Baffle, Broil Burner		Appelez-nous	-
7	W11418925		Manifold Assembly			Immediately	$ 317.61
8	W11628784		Valve, Gas (left Front And Right Front)   (Replaces: W11352012)				$ 80.44
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 94.98
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 91.65
12	W10919226		Valve, Gas   (Replaces: W10720102)			Immediately	$ 180.55
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 103.98
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 189.82
15	W10776437		Fitting, Broil				$ 103.45
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 85.81
17	W11485988		Orifice (18k) (left Front)				$ 68.99
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	W11453940		Electrode (left Front, Left Rear,center)   (Replaces: W11428831)				$ 64.46
22	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
23	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 12.65
17A	W11485873		Orifice (9.5k) (left Rear)				$ 69.03
17B	W11700316		Orifice (15k) (right Front)   (Replaces: W11485872)				$ 16.73
17C	W11712434		Orifice (5k) (right Rear)   (Replaces: W11485871)				$ 16.73
17D	W11485874		Orifice (8k) (center)				$ 69.03
21A	W11453920		Electrode (right Front, Right Rear)   (Replaces: W11428858)				$ 64.35
2A	W11557815		Orifice Holder Assembly (9.5k) (left Rear)   (Replaces: W11459258)		Appelez-nous	-
2B	W11557816		Orifice Holder Assembly (15k) (right Front)   (Replaces: W11459260)				$ 107.93
2C	W11557817		Orifice Holder Assembly (5k) (right Rear)   (Replaces: W11459259)		Appelez-nous	-
2D	W11557818		Orifice Holder Assembly (8k) (center)   (Replaces: W11459261)				$ 108.20
8A	W11699929		Valve, Gas (left Rear And Center)   (Replaces: W11352013)				$ 70.47
8B	W11352015		Valve, Gas (right Rear)				$ 113.04
NI	W11560165		Lp 5 Orifice Conversion Kit   (Replaces: W11489399)				$ 35.03
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11087486		Lp Conversion Kit (bake And Broil)   (Replaces: W10566535)			Immediately	$ 117.95
