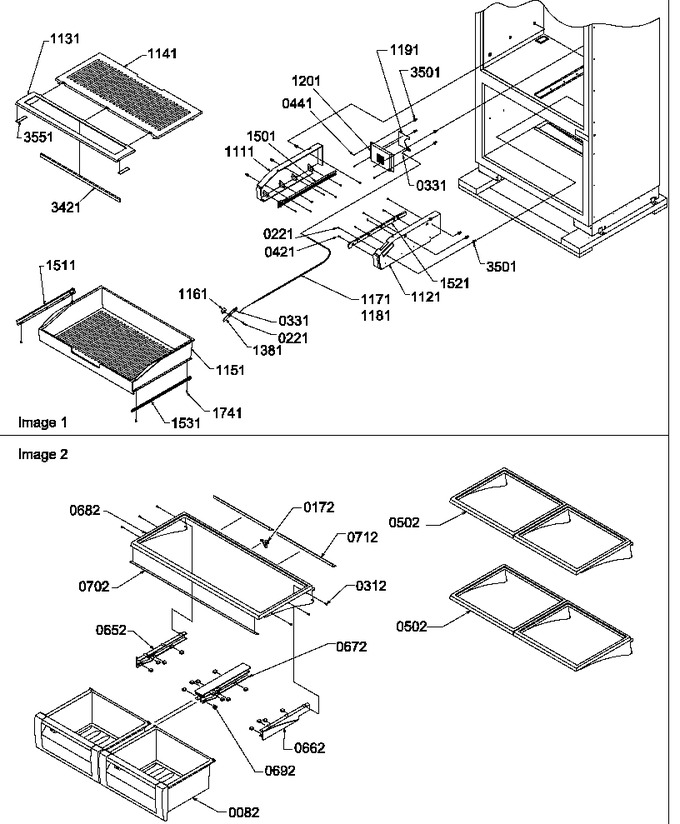

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 82 | 12056901 | Assy, Crisp Pan |
|
- | |||||
| 172 | 12046701 | Crisper Rail Weld |
|
- | |||||
| 221 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 312 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 331 | M0213105 | Screw-sm |
|
- | |||||
| 421 | 8169479 | Screw (Replaces: M0215318) |
|
$ 7.30 | |||||
| 441 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 502 | 12021301 | Shelf-ref |
|
- | |||||
| 652 | 12064501 | Glide-l Crisper |
|
- | |||||
| 662 | 12064502 | Glide-r Crisper |
|
- | |||||
| 672 | 12064601 | Glide-ctr Crisper |
|
- | |||||
| 682 | 12021401 | Shelf-crisper |
|
- | |||||
| 692 | 12064701 | Pad, Glide |
|
- | |||||
| 702 | 12070001 | Seal, Frt Crisper |
|
- | |||||
| 712 | 12070101 | Seal, Rear Crisper |
|
- | |||||
| 1111 | 12202601 | Support,drawer Left |
|
- | |||||
| 1121 | 12073001 | Support, R Drawer |
|
- | |||||
| 1131 | 12223201 | Assy, Deli Lid (bottom Mount) |
|
- | |||||
| 1141 | 12223301 | Assy, Deli Dwrtop/clip |
|
- | |||||
| 1151 | 12073301 | Drawer,deli(84`` Bm) |
|
- | |||||
| 1161 | 12073401 | Knob, Deli Control |
|
- | |||||
| 1171 | 12073501 | Tube-plastic |
|
- | |||||
| 1181 | 12073502 | Kit, Plastic Tube |
|
- | |||||
| 1191 | 12073601 | Slide-deli Control |
|
- | |||||
| 1201 | 12073701 | Cover, Deli Control |
|
- | |||||
| 1381 | 12070501 | Glide-deli Knob |
|
- | |||||
| 1501 | 12073901 | Glide-l Support |
|
- | |||||
| 1511 | 12073902 | Glide-l Drawer |
|
- | |||||
| 1521 | 12073903 | Glide-r Support |
|
- | |||||
| 1531 | 12073904 | Glide-r Drawer |
|
- | |||||
| 1741 | M0224128 | Screw |
|
- | |||||
| 3421 | 12116901 | Clip, Spring |
|
- | |||||
| 3501 | M0581001 | Grommet, Screw |
|
- | |||||
| 3551 | 12113101 | Pad, Snugger |
|
- |
