SELECT A DIAGRAM

01 - Cover Sheet

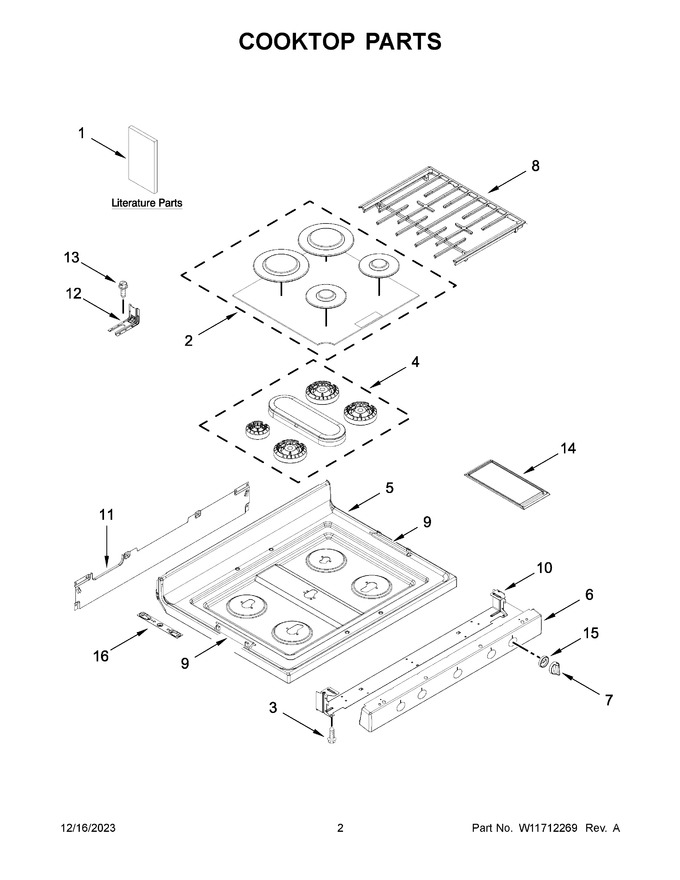

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427473		Quick Start Guide		Appelez-nous	-
2	W11605759		Kit, Burner Cap (set Of 4) (black (set Of 4))   (Replaces: W11498499)			Immediately	$ 75.35
3	WPW10067840		Screw   (Replaces: W10067840)				$ 8.30
4	W11662402		Burner Kit   (Replaces: W11367107)			Immediately	$ 130.11
5	W11459372		Cooktop (black)   (Replaces: W11418087)				$ 452.91
6	W11174678		Panel, Manifold (stainless)   (Replaces: W11025417)				$ 311.65
7	W11174696		Knob (stainless)   (Replaces: W10917221)				$ 82.17
8	W11175178		Grate Kit (includes 2 Grates) (black)   (Replaces: W10865170)				$ 364.92
9	ARI563D9D6089659C637E568300AAF28844		Hinge, Grate (not Serviced)		Appelez-nous	-
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W11123246		Griddle   (Replaces: W11043399)				$ 102.52
15	W11175131		Bezel (stainless)   (Replaces: W10917236)				$ 61.92
16	W10879790		Grate Hinge Spacer		Appelez-nous	-
15A	W11175136		Bezel (black Stainless)   (Replaces: W10917224)		Appelez-nous	-
1A	W11448510		Use And Care Guide		Appelez-nous	-
1B	W11565453		Tech Sheet		Appelez-nous	-
1C	W11097305		Internet Connectivity Guide		Appelez-nous	-
6A	W11174694		Panel, Manifold (black Stainless)   (Replaces: W10874048)				$ 317.43
7A	W11174697		Knob (black Stainless)   (Replaces: W10917222)				$ 82.38
NI	W11161843		Harness, Bake And Broil   (Replaces: W10753750)				$ 216.55
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11458870		Harness, Main		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	7111P01760		Clamp, Wire		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
