01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

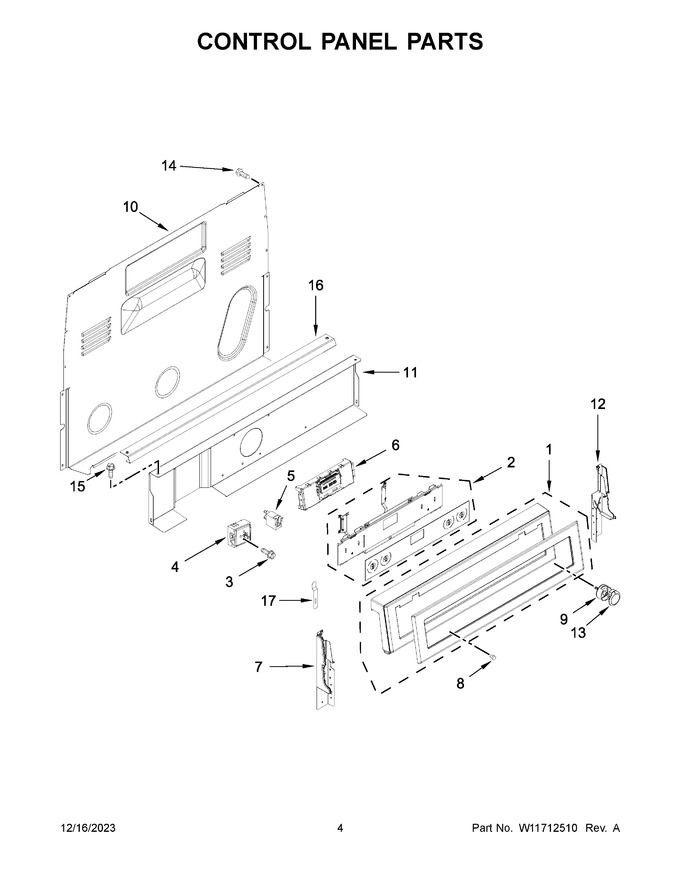

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11164063 | Console (stainless) (Replaces: W10645848) |
|
Immediately | $ 518.62 | ||||
| 2 | W11527488 | Assembly, Active Overlay (black) |
|
$ 321.72 | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 4 | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP8523265 | Hot Surface Indicator (Replaces: W10432504) |
|
Immediately | $ 86.31 | ||||
| 6 | W11088877 | Control, Maxwell (Replaces: W10894863) |
|
Immediately | $ 372.51 | ||||
| 7 | W11404310 | Endcap (black (left)) |
|
$ 77.00 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W11368920 | Bezel, Knob (Replaces: W10645811) |
|
Immediately | $ 60.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11404311 | Endcap (black (right)) |
|
- | |||||
| 13 | W10915061 | Knob (stainless) (Replaces: W10823535) |
|
$ 74.50 | |||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 4A | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 |
