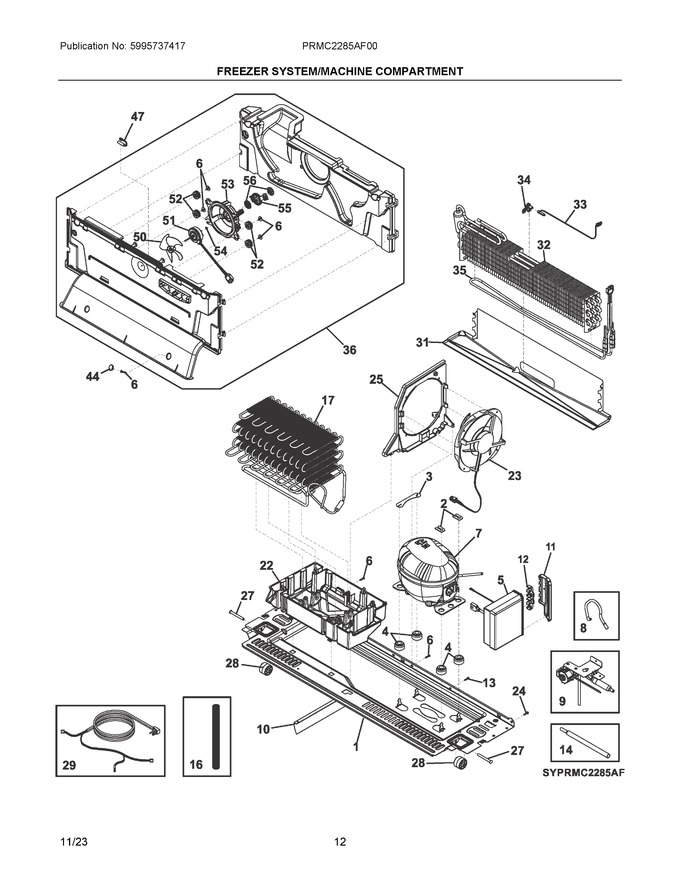

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304519151 | Base, Compressor Assy |
|
$ 146.62 | |||||
| 2 | 5304519152 | Clamp, Compressor, Single Hole |
|
- | |||||
| 3 | 5304524607 | Clamp, Compressor, 2 Hole (Replaces: 811998601) |
|
$ 3.21 | |||||
| 4 | 811978901 | Grommet, Compressor |
|
- | |||||
| 5 | 5304523061 | Control Assembly, Flex Drive |
|
Immediately | $ 380.42 | ||||
| 6 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.37 | |||||
| 7 | 5304523062 | Compressor, Assembly, Vnd1113y |
|
Immediately | $ 857.01 | ||||
| 8 | 5304519154 | Tube, Suction |
|
Immediately | $ 42.75 | ||||
| 9 | 5304529531 | Step Valve, Assembly, W/filter Drier (Replaces: 5304523063) |
|
Immediately | $ 207.24 | ||||
| 10 | 5304523064 | Flap Bracket, Compressor Base |
|
- | |||||
| 11 | 5304526792 | Cover, Flex Drive, Side, Compressor (Replaces: 808364804) |
|
$ 19.86 | |||||
| 12 | 5304526793 | Clamp, Flex Drive, Cable (Replaces: 808364908) |
|
$ 10.11 | |||||
| 13 | 5304519110 | Screw, Trilob, M3 X 6 |
|
$ 3.37 | |||||
| 14 | 5304523065 | Tubing, Extra, Refrigerant |
|
$ 17.86 | |||||
| 16 | 5304519156 | Drain Tube, Corrugated |
|
$ 6.74 | |||||
| 17 | 5304538286 | Condenser Assembly, Dynamic (Replaces: 5304519157) |
|
Immediately | $ 211.68 | ||||
| 22 | 5304529527 | Drain Pan, Condenser (Replaces: 5304519158) |
|
$ 32.94 | |||||
| 23 | 5304525730 | Fan Assembly, Condenser (Replaces: 5304519159) |
|
$ 115.67 | |||||
| 24 | 808199001 | Screw, Self Tapping, 6 X 20 |
|
$ 7.88 | |||||
| 25 | 5304529530 | Shroud, Condenser Fan (Replaces: 5304519160) |
|
$ 18.60 | |||||
| 27 | 811998302 | Shaft, Cabinet Roller |
|
$ 11.80 | |||||
| 28 | 811666601 | Roller, Cabinet |
|
$ 10.11 | |||||
| 29 | 5304538934 | Power Cord, Electric (Replaces: 5304523066) |
|
$ 61.53 | |||||
| 31 | 5304519162 | Drain Trough, Evaporator, Freezer |
|
- | |||||
| 32 | 5304529535 | Evaporator, Assembly, Freezer (Replaces: 5304519163) |
|
Immediately | $ 177.18 | ||||
| 33 | 5303918851 | Thermostat Kit, Defrost, W/connectors |
|
Immediately | $ 40.83 | ||||
| 34 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.66 | |||||
| 35 | 140159197049 | Heater, Defrost, Evaporator (Replaces: 5304523054) |
|
Immediately | $ 114.71 | ||||
| 36 | 5304523067 | Cover Assembly, Evaporator, Freezer, W/fan Assy (Replaces: 5304523901) |
|
Immediately | $ 157.21 | ||||
| 44 | 5304524004 | Cover, Screw Hole, White |
|
Immediately | $ 5.63 | ||||
| 47 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 26.38 | ||||
| 50 | 811699604 | Blade, Evaporator Fan (Replaces: 811699602) |
|
Immediately | $ 4.66 | ||||
| 51 | 809069207 | Motor, Fan, Frz Evaporator |
|
Immediately | $ 165.31 | ||||
| 52 | 5304519174 | Grommet, Fan Shround, Freezer |
|
- | |||||
| 53 | 5304519175 | Shroud, Fan, Freezer |
|
$ 14.18 | |||||
| 54 | 5304519176 | Washer, Slinger, Nylon |
|
$ 3.37 | |||||
| 55 | 5304519177 | Clip, Retainer |
|
$ 9.27 | |||||
| 56 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 8.43 | ||||
| NI | 811950601 | Seal, 6x8, Foam Tape, 154" Roll |
|
- | |||||
| NIA | 5304523687 | Sticker, Plastic Cap, White |
|
- | |||||
| NIA | 5304523068 | Washer, Fan Grommet |
|
- |
