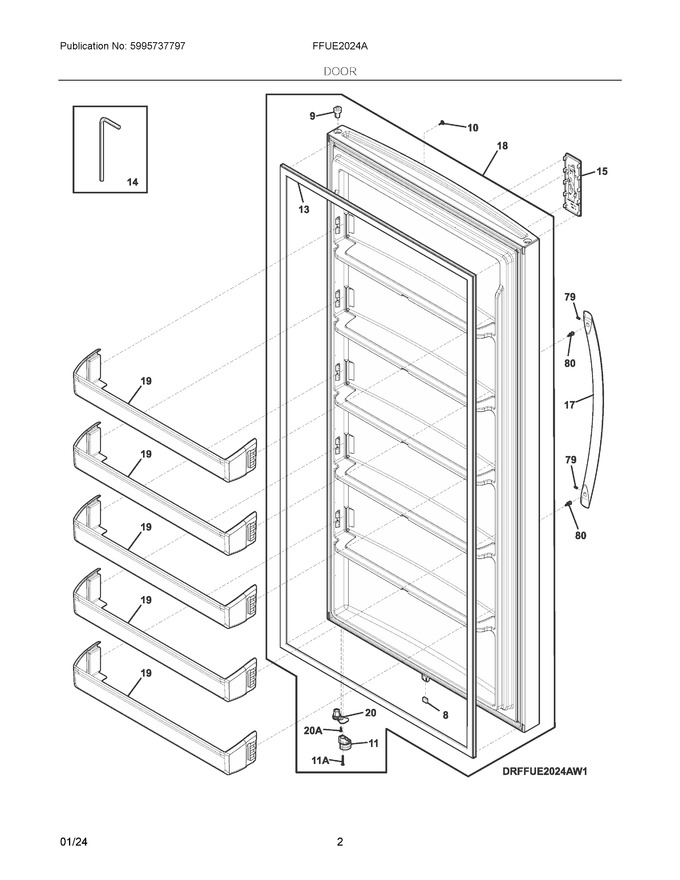

02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 88 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 21.06 | ||||
| 99 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.53 | ||||
| 111 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 9.27 | ||||
| 131 | 140190906861 | Gasket, Door, Gray (Replaces: 5304524887) |
|
Immediately | $ 125.04 | ||||
| 141 | 241601002 | Wrench, Allen |
|
- | |||||
| 151 | 5304524097 | User Interface, Assembly, W/pc Board |
|
Immediately | $ 182.01 | ||||
| 171 | 5304511770 | Handle-door, Stainless (Replaces: 5304510343) |
|
Immediately | $ 254.48 | ||||
| 181 | 5304531522 | Door Assembly, Freezer, Carbon, W/gasket-hrdwre |
|
$ 428.23 | |||||
| 191 | 5304524110 | Shelf, Door, Clear |
|
Immediately | $ 43.38 | ||||
| 202 | 5304530176 | Bearing, Door, Gray, Lower |
|
- | |||||
| 797 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 808 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 21.74 | ||||
| 11A1 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 | ||||
| 20A2 | 5304453707 | Screw, Quad Hilo, #8-18 X 0.50 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| NIN | 5304524123 | Harness, Jumper, Cabinet, To Door |
|
$ 26.75 | |||||
| NIN | 140276924044 | Button, Plug, Gray (Replaces: 240494009) |
|
- |
