SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner And Icemaker Parts


05 - Refrigerator Door Parts

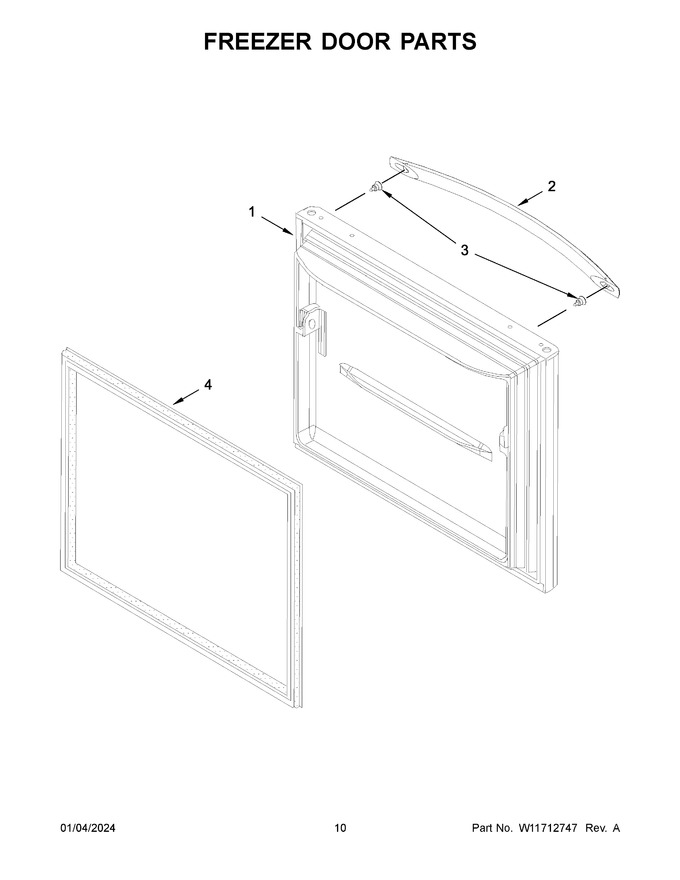

06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13109220BQ		Door, Freezer (black)   (Replaces: 13109220B)				$ 933.08
2	W10635688		Handle, Door (black)				$ 271.53
3	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.45
4	W10443312		Gasket, Door (grey)				$ 248.54

    View Diagram in Separate Window       Print Part List
