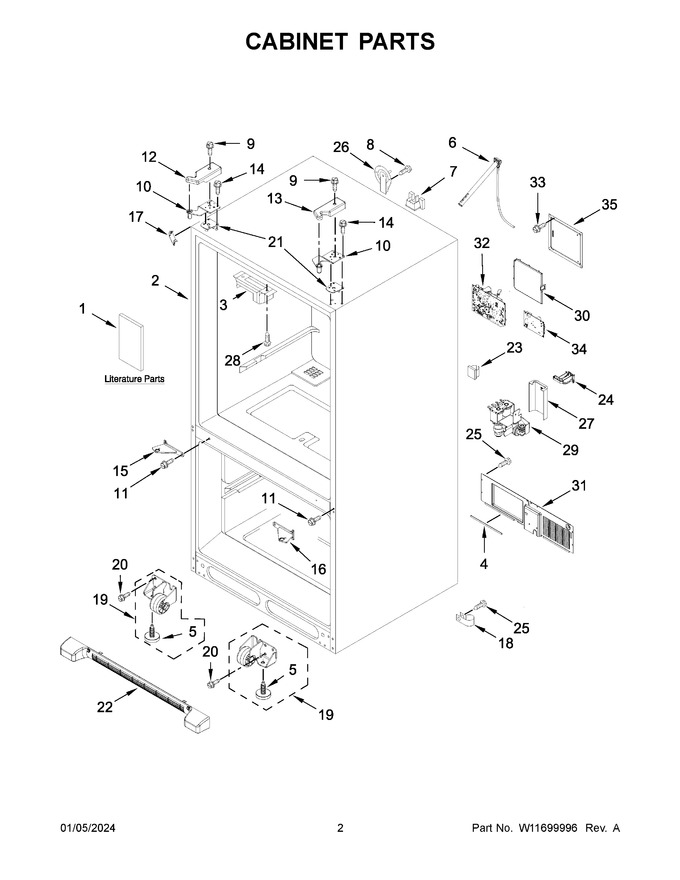

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11665551 | Tech Sheet |
|
- | |||||
| 2 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11024160 | Block, Pivot (Replaces: W10120087) |
|
$ 17.98 | |||||
| 4 | W11534848 | Gasket |
|
Immediately | $ 20.11 | ||||
| 5 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 6 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 82.14 | ||||
| 7 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 21.21 | |||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 9 | 12992603 | Screw |
|
$ 9.30 | |||||
| 10 | W10892768 | Hinge, Top (left Hand) |
|
$ 68.84 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 12 | W11039391 | Cover, Hinge Left Hand (grey) |
|
$ 17.51 | |||||
| 13 | WPW10120103 | Cover, Hinge Right Hand (grey) (Replaces: W10120103) |
|
$ 7.58 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11747629 | Hinge, Center Left Hand (grey) (Replaces: W10135096) |
|
Immediately | $ 48.98 | ||||
| 16 | W11747629 | Hinge, Center Right Hand (grey) (Replaces: W10135097) |
|
Immediately | $ 48.98 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 89.58 | |||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 107.60 | ||||
| 23 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 7.35 | |||||
| 24 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 29 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 106.85 | ||||
| 30 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 31 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 32 | WPW10120827 | Control, Electronic (Replaces: W10120827) |
|
Immediately | $ 339.08 | ||||
| 33 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 34 | WPW10356039 | Control, Electronic (power Supply) (Replaces: W10356039) |
|
Immediately | $ 339.34 | ||||
| 35 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 10A | W10210891 | Hinge, Top (right Hand) |
|
$ 78.10 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 1A | W11468670 | Use And Care Guide |
|
- | |||||
| 1B | W11647514 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Hinge (right Hand) |
|
$ 90.54 |
