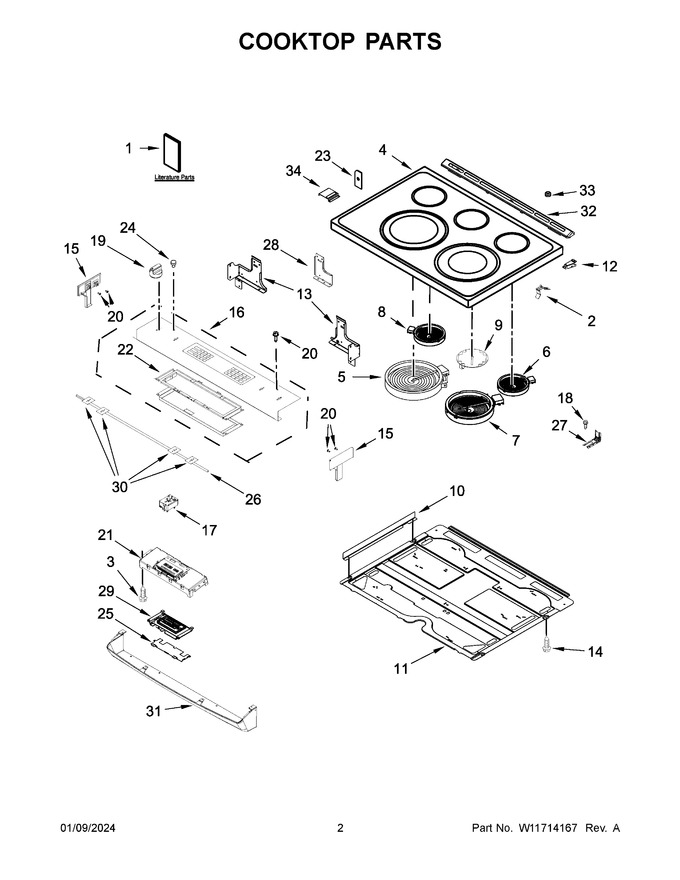

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11634899 | Quick Start Guide |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 13.36 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 4 | W10751487 | Cooktop (stainless) (Replaces: W10668781) |
|
Immediately | $ 701.81 | ||||
| 5 | W11517959 | Element (3000 And 1400w) (left Front) (Replaces: W10275048) |
|
Immediately | $ 132.01 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: W10248261) |
|
Immediately | $ 203.06 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 307.76 | ||||
| 8 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
$ 201.13 | |||||
| 9 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 119.66 | |||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 70.12 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 163.45 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 66.72 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 27.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 151.97 | |||||
| 16 | W11686850 | Assembly, Console (stainless) (Replaces: W11562909) |
|
Immediately | $ 973.92 | ||||
| 17 | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 18 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 19 | W11686851 | Knob (stainless) (Replaces: W11562911) |
|
$ 59.31 | |||||
| 20 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 21 | W11686852 | Control, Electronic (mrc2) (Replaces: W11626844) |
|
Immediately | $ 332.94 | ||||
| 22 | W10557780 | Bracket , Control |
|
$ 33.01 | |||||
| 23 | W10882900 | Gasket |
|
$ 21.01 | |||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 22.59 | |||||
| 26 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 20.73 | ||||
| 28 | W10598048 | Bracket, Console (center) |
|
$ 23.16 | |||||
| 29 | W11108634 | Display, Assembly (Replaces: W10759326) |
|
$ 530.65 | |||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W10565662 | Panel, Lower Console (stainless) |
|
$ 188.43 | |||||
| 32 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 141.47 | |||||
| 33 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 19.77 | ||||
| 34 | W11158783 | Shield, Keypad |
|
- | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 70.73 | |||||
| 13A | W10289169 | Support, Cooktop (right) |
|
$ 27.05 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 151.97 | |||||
| 17A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 143.96 | ||||
| 17B | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 17C | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 1A | W11636062 | Tech Sheet |
|
- | |||||
| 1B | W11632003 | Owners Manual |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 67.76 | ||||
| NI | W11207143 | Harness, Console |
|
$ 218.45 | |||||
| NI | W11188430 | Harness, Cooktop |
|
$ 217.46 | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 213.24 | ||||
| NI | W11761836 | Harness, Main (Replaces: W11454497) |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 18.87 |
