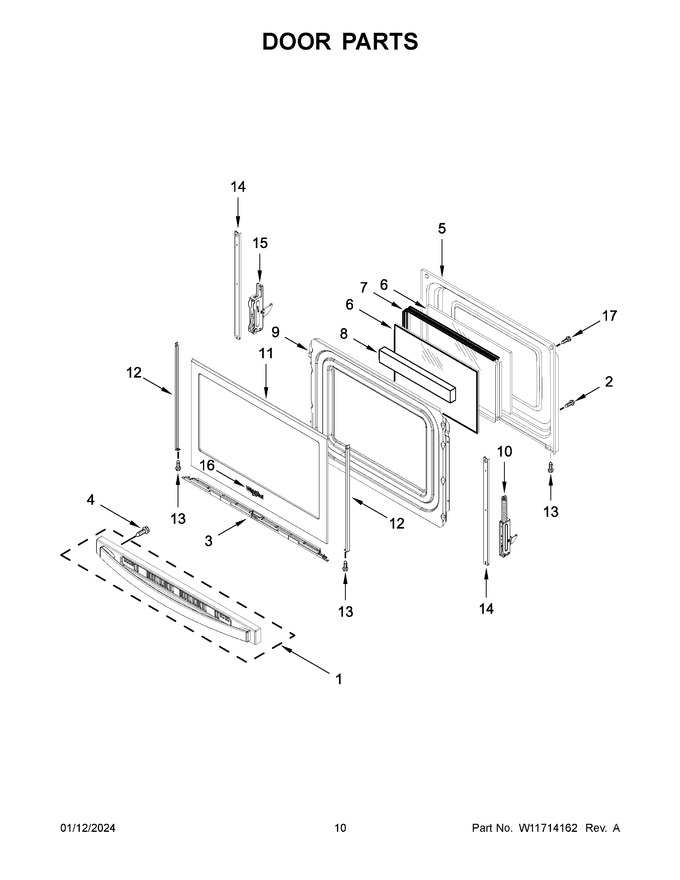

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11594199 | Handle And Vent Assembly (biscuit) (includes Standoff) (Replaces: W11242946) |
|
- | |||||
| 2 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 3 | W11594200 | Trim, Lower Door (biscuit) (Replaces: W11444044) |
|
- | |||||
| 4 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 5 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 6 | W11159620 | Glass, Inner (Replaces: W11044424) |
|
Immediately | $ 186.41 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 90.09 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: W11380222) |
|
$ 233.31 | |||||
| 10 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 11 | WPW10409947 | Glass, Outer Door (biscuit) (Replaces: W10409947) |
|
$ 320.94 | |||||
| 12 | WP8523173 | Trim, Door (biscuit (left)) (Replaces: 8523173) |
|
$ 123.53 | |||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 12A | WP8523167 | Trim, Door (biscuit (right)) (Replaces: 8523167) |
|
$ 119.10 |
