01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)

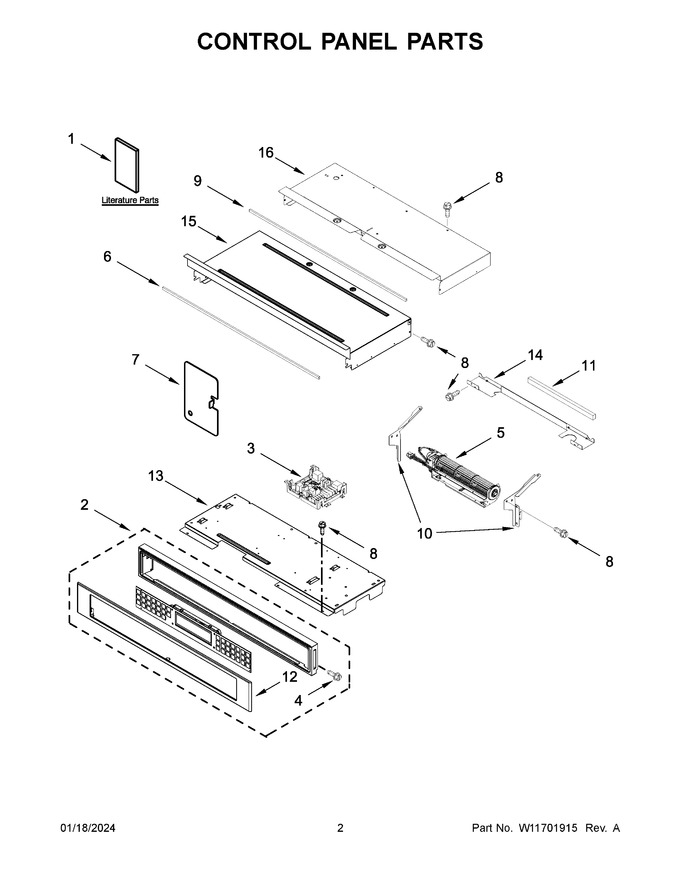

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11656312		Owner's Manual		Appelez-nous	-
2	W11670520		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11640545)				$ 1,050.37
3	W11448962		Appliance Manager, Copernicus   (Replaces: W11249218)			Immediately	$ 325.47
4	W11602625		Screw (black)   (Replaces: W11339492)				$ 14.72
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 388.25
6	W11226313		Gasket, Rubber (652 Mm)   (Replaces: W11162062)				$ 24.40
7	W11533682		Cover, Wifi		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W10728475		Gasket, Rubber				$ 38.13
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10588741		Skin, Control Panel (stainless)				$ 241.78
13	W11179509		Tray, Electronic		Appelez-nous	-
14	W11166802		Divider, Chassis Back		Appelez-nous	-
15	W11244469		Cover, Top Front 27 In Chassis		Appelez-nous	-
16	W11244459		Cover, Top Back 27 In Chassis		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10909789		Skin, Control Panel (black Stainless)   (Replaces: W10861075)				$ 522.48
1A	W11618058		Quick Start Guide		Appelez-nous	-
1B	W11382212		Wiring Diagram		Appelez-nous	-
1C	W11340883		Tech Manual		Appelez-nous	-
2A	W11670517		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W11640555)		Appelez-nous	-
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	W11256622		Harness, Signal				$ 129.70
NI	W11759107		Harness, Main   (Replaces: W11245665)				$ 242.33
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 15.39
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 61.80
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W10655464		Bracket, Harness				$ 40.71
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W10487999		Clip, Harness				$ 21.12
NI	4448664		Clamp, Conduit				$ 21.41
NI	4450800		Screw, Grounding				$ 13.47
