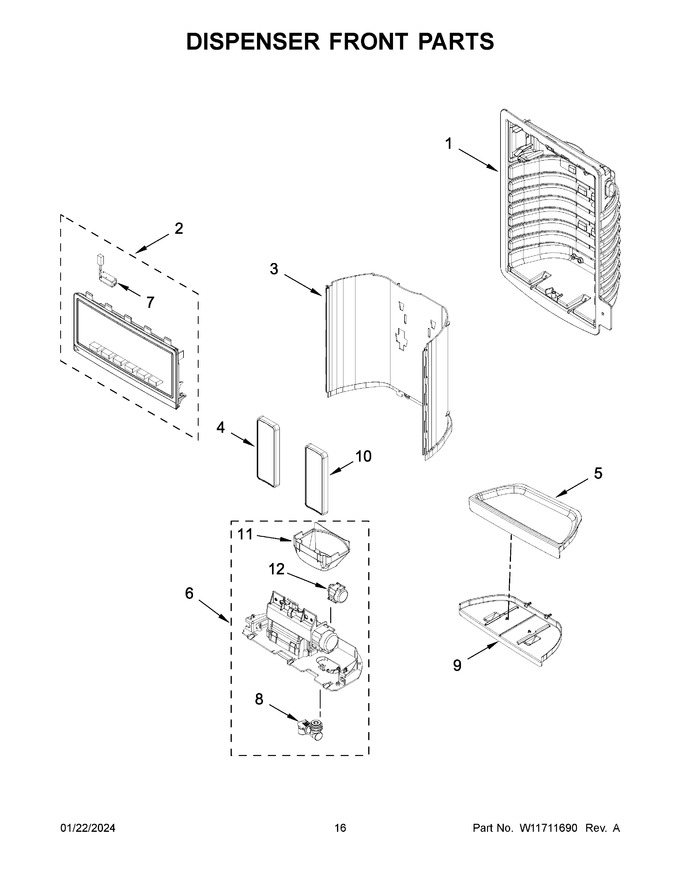

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI0820F7799426DB23CC858392159B72FE | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11766558 | Assembly, Stealth User Interface (Replaces: W11600495) |
|
$ 703.49 | |||||
| 3 | W11045975 | Wall, Dispenser False (white) |
|
- | |||||
| 4 | WPW10368730 | Assembly, Ice Pad (grey) (Replaces: W10334801) |
|
Immediately | $ 319.47 | ||||
| 5 | W11045970 | Tray, Dispenser (white) |
|
$ 65.93 | |||||
| 6 | WPW10353552 | Assembly, Separator (includes Spigot And Ice Guide) (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 8 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 136.38 | |||||
| 9 | W10267860 | Tray, Dispenser Slide (white) |
|
- | |||||
| 10 | WPW10368730 | Assembly, Water Pad (grey) (Replaces: W10334825) |
|
Immediately | $ 319.47 | ||||
| 11 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 |
