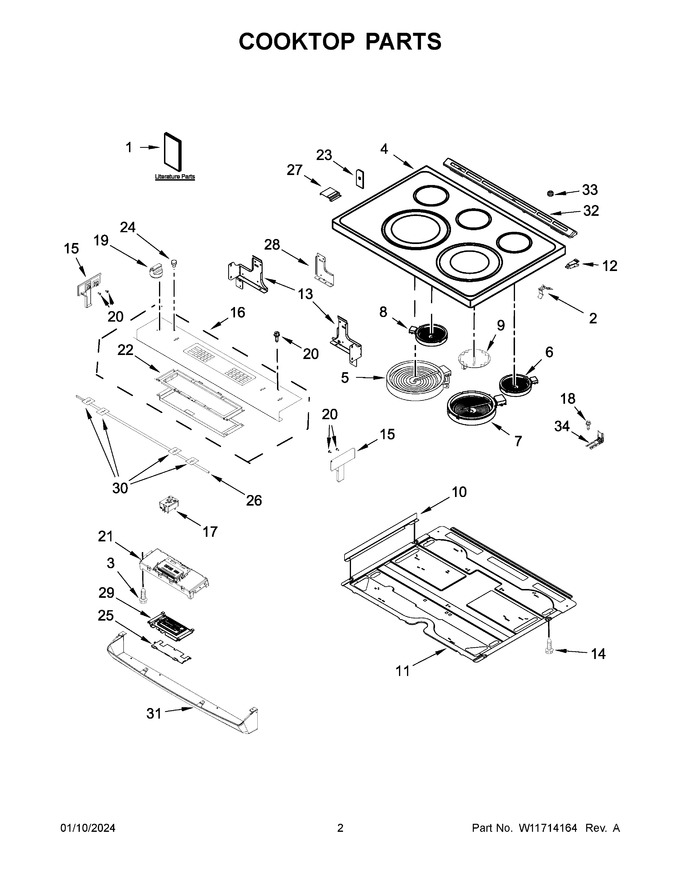

02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11634899		Quick Start Guide		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
4	W10751487		Cooktop (stainless)   (Replaces: W10668781)			Immediately	$ 692.82
5	W11517959		Element (3000 And 1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
7	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
8	WPW10270604		Element (700w) (left Rear)   (Replaces: W10270604)				$ 223.48
9	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
10	W11175271		Bracket, Radiant				$ 77.91
11	W10536275		Pan, Radiant				$ 181.61
12	W10162253		Brace, Corner (left)				$ 74.13
13	W10289170		Support, Cooktop (left)				$ 30.05
14	W11244557		Screw   (Replaces: 3196173)				$ 14.29
15	W10557751		Stainless (left)				$ 168.85
16	W11686850		Assembly, Console (stainless)   (Replaces: W11562909)			Immediately	$ 733.53
17	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 211.69
18	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
19	W11686851		Knob (stainless)   (Replaces: W11562911)				$ 65.90
20	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
21	W11686852		Control, Electronic (mrc2)   (Replaces: W11626844)			Immediately	$ 369.93
22	W10557780		Bracket , Control				$ 36.68
23	W10882900		Gasket				$ 23.34
24	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
25	W10558372		Bracket, Control				$ 25.10
26	W10802441		Gasket, Console And Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
27	W11158783		Shield, Keypad		Appelez-nous	-
28	W10598048		Bracket, Console (center)				$ 25.73
29	W11108634		Display, Assembly   (Replaces: W10759326)				$ 589.61
30	7201P07760		Gasket, Infinite Switch		Appelez-nous	-
31	W10565662		Panel, Lower Console (stainless)				$ 209.37
32	W11240519		Vent, Trim Top (black)   (Replaces: W10636528)				$ 157.19
33	W11104127		Bumper   (Replaces: W10664705)			Immediately	$ 21.97
34	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
12A	W10162252		Brace, Corner (right)				$ 78.59
13A	W10289169		Support, Cooktop (right)				$ 30.05
15A	W10557754		Stainless (right)				$ 168.85
17A	WPW10295048		Switch, Infinite (left Rear)   (Replaces: W10295048)			Immediately	$ 159.95
17B	W10917724		Switch, Infinite (right Front And Left Rear)   (Replaces: W10437094)			Immediately	$ 129.35
17C	W10911303		Switch, Infinite (right Rear)   (Replaces: W10578768)			Immediately	$ 104.64
1A	W11636062		Tech Sheet		Appelez-nous	-
1B	W11632003		Owners Manual		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W11207143		Harness, Console				$ 242.72
NI	W11188430		Harness, Cooktop				$ 241.62
NI	W11226772		Harness, Display   (Replaces: W11172426)			Immediately	$ 236.93
NI	W11766511		Harness, Main   (Replaces: W11454498)				$ 242.33
NI	W10664316		Clip, Harness (cooktop)				$ 20.97
