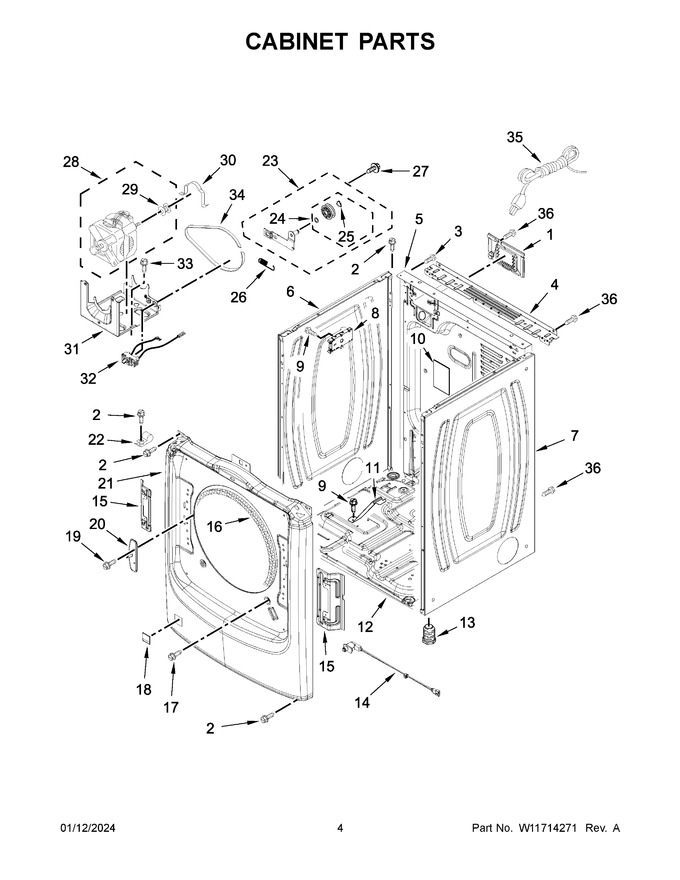

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 3 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 4 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 5 | W10487431 | Panel, Rear |
|
$ 181.26 | |||||
| 6 | W11233548 | Panel, Side (left) (white) (Replaces: W11177568) |
|
$ 248.89 | |||||
| 7 | W11310043 | Panel, Side (right) (white) (Replaces: W11177569) |
|
$ 293.46 | |||||
| 8 | W11759053 | Appliance Control Unit (acu) (Replaces: W11529154) |
|
$ 281.62 | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 10 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 22.63 | |||||
| 11 | W10181903 | Bracket, Burner (Replaces: 8529757) |
|
- | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 347.96 | |||||
| 13 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 14 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 31.69 | ||||
| 15 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 23.53 | |||||
| 16 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 17 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 18 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 15.71 | |||||
| 19 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 20 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 27.68 | |||||
| 21 | W11752163 | Panel, Front (white) (Replaces: W11413344) |
|
Immediately | $ 321.87 | ||||
| 22 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 23 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 24 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 25 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 27 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 28 | W11511154 | Assembly, Motor (Replaces: W11322192) |
|
Immediately | $ 269.07 | ||||
| 29 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 30 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 31 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 87.83 | ||||
| 32 | W11662087 | Switch, Broken Belt (Replaces: W10774832) |
|
$ 52.35 | |||||
| 33 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 34 | W11667280 | Belt, Drive (Replaces: W11575710) |
|
$ 33.50 | |||||
| 35 | W11628810 | Cord, Power (Replaces: W11308561) |
|
$ 97.05 | |||||
| 36 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.82 | |||||
| 13A | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 85.68 | ||||
| NI | ARI49056CBCEA95B374289EE824637D0633 | Dryer Exhaust Kit Not Included |
|
- |
