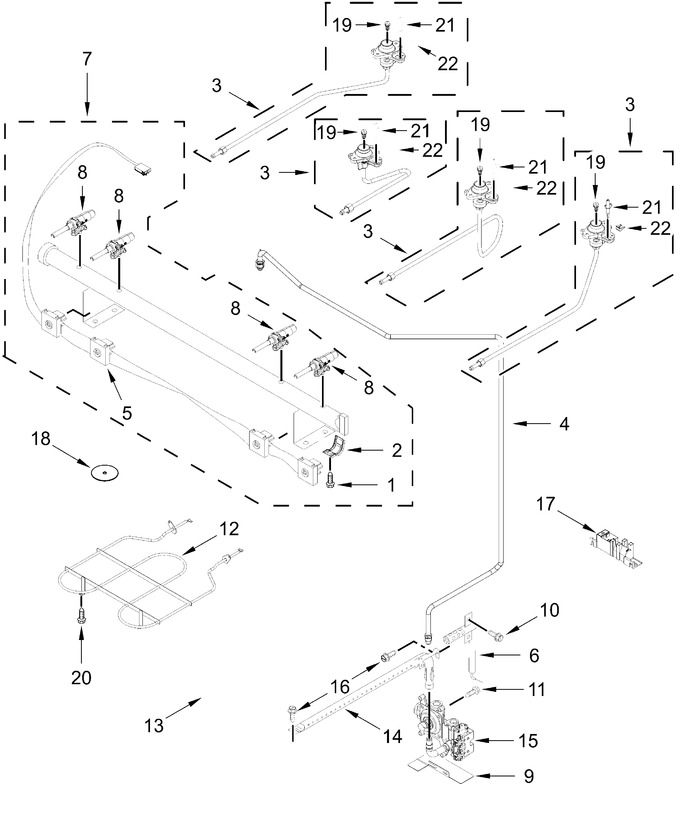

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11666001 | Screw (Replaces: W10246216) |
|
$ 14.28 | |||||
| 2 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 3 | W10827780 | Assembly, Orifice Holder (9.5k) |
|
$ 108.01 | |||||
| 4 | W10804030 | Tubing (manifold To Regulator) |
|
- | |||||
| 5 | W11537738 | Harness, Switch |
|
- | |||||
| 6 | W11524031 | Electrode, Bake (Replaces: W11450459) |
|
Immediately | $ 56.90 | ||||
| 7 | W11512354 | Assembly, Manifold |
|
$ 374.72 | |||||
| 8 | W11511835 | Valve, Gas |
|
$ 96.71 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 11 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 12 | W11847084 | Element, Broiler (Replaces: W10714060) |
|
$ 117.89 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | W10898290 | Regulator (Replaces: W10818355) |
|
Immediately | $ 393.66 | ||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 17 | W11693498 | Module, Spark (Replaces: W11349967) |
|
Immediately | $ 105.71 | ||||
| 18 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| 19 | W10849717 | Orifice (15k) |
|
Immediately | $ 93.46 | ||||
| 20 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 21 | W11661929 | Electrode, Burner (Replaces: W10669526) |
|
Immediately | $ 50.21 | ||||
| 22 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| W11511833 | Valve, Gas |
|
Immediately | $ 96.71 | |||||
| W11763416 | Orifice, Lp Bake (Replaces: W10838304) |
|
$ 52.11 | ||||||
| W11677633 | Orifice (5k) (Replaces: W10849719) |
|
$ 99.15 | ||||||
| W10849714 | Orifice (9.5k) |
|
$ 93.46 | ||||||
| ARI68146C2FADA8E1AE3122F181AC9275E2 | (left Front, Right Front) |
|
- | ||||||
| ARI76BF577D359F4F7B6AC1C45BB9FB0006 | (left Front) |
|
- | ||||||
| W10827777 | Assembly, Orifice Holder (15k) |
|
$ 107.98 | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W10827779 | Assembly, Orifice Holder (5k) |
|
$ 108.01 | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11511834 | Valve, Gas |
|
$ 96.44 | ||||||
| ARI331AC8E6A0B32951011383800D6FC3B6 | (left Front, Right Front) |
|
- | ||||||
| W11699925 | Spuds, Lp Gas (Replaces: W10838118) |
|
$ 53.04 | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | ||||||
| W11661897 | Electrode, Burner (Replaces: W10669523) |
|
$ 48.36 | ||||||
| W11643126 | Electrode, Burner (Replaces: W10669524) |
|
Immediately | $ 38.01 | |||||
| W11666003 | Electrode, Burner (Replaces: W10669525) |
|
$ 48.41 | ||||||
| ARIF7E7CB4EEF4E7DE47369C6A29EE1E0F9 | (left Rear) |
|
- | ||||||
| W11035644 | Assembly, Orifice Holder (15k) (Replaces: W10827775) |
|
$ 100.13 |
