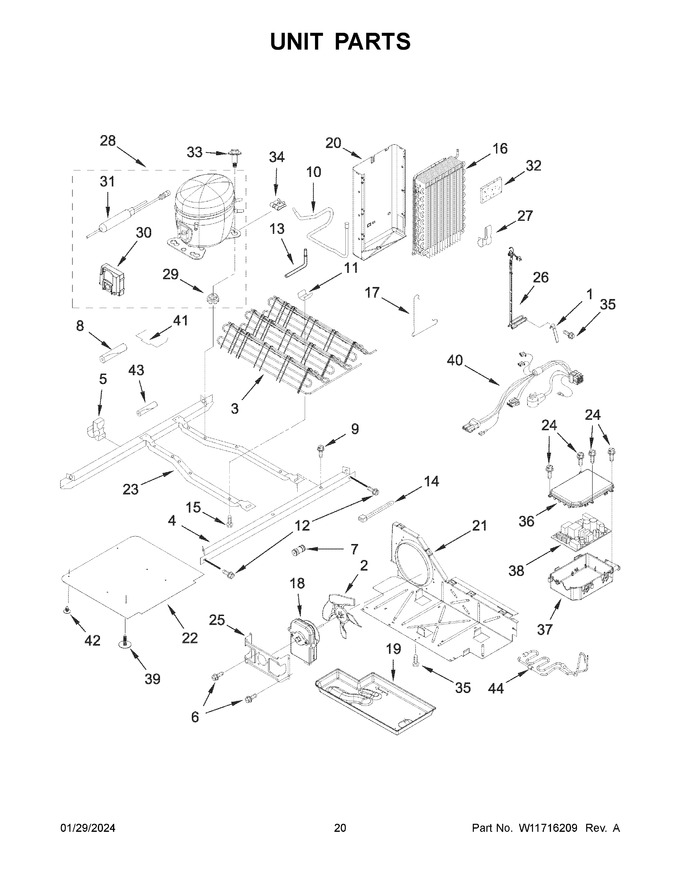

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 23.16 | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | W11632924 | Assembly, Condenser (also Order The Following Lokring Parts) (Replaces: W11553540) |
|
Immediately | $ 237.55 | ||||
| 4 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 11.12 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 10 | W11547179 | Tube, Suction (Replaces: W11505005) |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 19.38 | |||||
| 12 | 489340 | Bolt |
|
- | |||||
| 13 | W11558176 | Tube, Process (Replaces: W11509632) |
|
- | |||||
| 14 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 8.30 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 16 | W11546692 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357918) |
|
$ 263.89 | |||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W11546724) |
|
Immediately | $ 71.42 | ||||
| 19 | W11678304 | Tray, Evaporator (Replaces: W11562498) |
|
$ 57.39 | |||||
| 20 | W11400740 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | W10896764 | Baffle, Air |
|
$ 101.20 | |||||
| 22 | W10897560 | Assembly, Unit Cover (bottom) |
|
$ 101.57 | |||||
| 23 | W10900446 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
- | |||||
| 24 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.61 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.93 | |||||
| 26 | W11650661 | Assembly, Defrost Heater And Evaporator Fan Harness (includes Thermal Fuse) (Replaces: W11573117) |
|
$ 212.13 | |||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11557671 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 30 | W11546982 | Inverter (Replaces: W11404943) |
|
- | |||||
| 31 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 32 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 33 | W11417341 | Screw (Replaces: W10476309) |
|
$ 14.07 | |||||
| 34 | W10697017 | Clip, Retaining |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 36 | W10313215 | Cover, Electronic Control |
|
$ 77.99 | |||||
| 37 | 2323186 | Box, Control |
|
$ 107.48 | |||||
| 38 | W11742382 | Control, Electronic (Replaces: W11321508) |
|
Immediately | $ 311.12 | ||||
| 39 | 489396 | Clip |
|
$ 11.26 | |||||
| 40 | W11609465 | Assembly, Wire Harness (Replaces: W11383262) |
|
$ 225.89 | |||||
| 41 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 8.30 | |||||
| 42 | W10000080 | Retainer, Push-in |
|
- | |||||
| 43 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 44 | W11678305 | Assembly, Precooler Formed (Replaces: W11442858) |
|
$ 66.63 | |||||
| 16A | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 48.58 | ||||
| 16B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 32.10 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.89 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (process Tube To Compressor) |
|
Immediately | $ 25.88 | ||||
| 31A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 29.40 | ||||
| 31B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 22.00 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| NI | ARIEECA0D5508F01B518BF1EC83A36EF0B0 | Refrigerant Charge 68 Grams (r600a) |
|
- |
