SELECT A DIAGRAM

01 - Cover Sheet

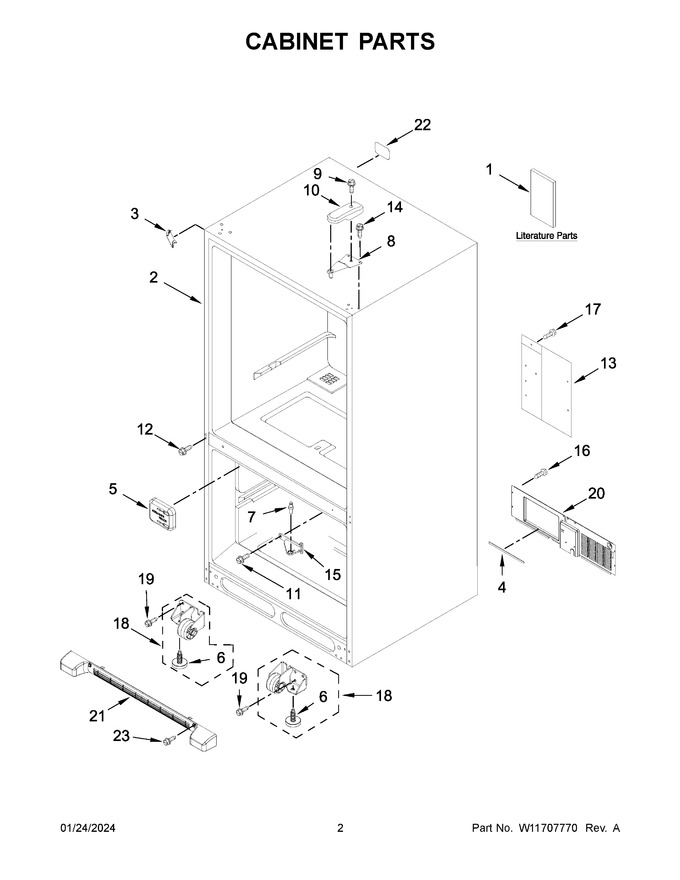

02 - Cabinet Parts


03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11479841		Owner's Manual		Appelez-nous	-
2	ARI89959A0406B9B609EB9764890B107614		Cabinet (not A Servicable Part)		Appelez-nous	-
3	12587703W		Cover, Corner (white)				$ 22.90
4	B5759655		Gasket   (Replaces: W11534846)				$ 13.03
5	W11533743		Cover. Fill Tube   (Replaces: W11328747)		Appelez-nous	-
6	WPW10141622		Brake, Roller   (Replaces: W10141622)			Immediately	$ 8.24
7	WP67006642		Pin, Center Hinge   (Replaces: 10351006)				$ 8.78
8	WP12566606ED		Hinge, Top   (Replaces: 12566606ED)			Immediately	$ 47.13
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	67001014		Cover, Hinge (white)   (Replaces: 12477601W)				$ 22.34
11	W11573362		Screw (stainless)   (Replaces: W10673840)				$ 14.72
12	WP98165		Screw   (Replaces: 12990521)				$ 8.57
13	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 21.36
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 8.43
15	W11689473		Hinge, Center   (Replaces: W11610756)				$ 69.79
16	WPW10141645		Screw   (Replaces: W10141645)				$ 8.05
17	WP489128		Screw   (Replaces: 12991604)				$ 11.40
18	W11820444		Assembly, Roller (left Hand)   (Replaces: W10515763)			Immediately	$ 37.35
19	67006564		Screw   (Replaces: W10709365)			Immediately	$ 8.15
20	W10210978		Cover, Unit				$ 201.78
21	WPW10534166		Grille, Toe (white)   (Replaces: W10534166)			Immediately	$ 76.61
22	W11685757		Label, Fill Tube   (Replaces: 12249902)				$ 7.41
23	WP98165		Screw   (Replaces: 12990504)				$ 8.57
18A	W11820445		Assembly, Roller (right Hand)   (Replaces: W10515762)			Immediately	$ 37.35
1A	W11644240		Energy Guide		Appelez-nous	-
1B	W11312474		Tech Sheet		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
