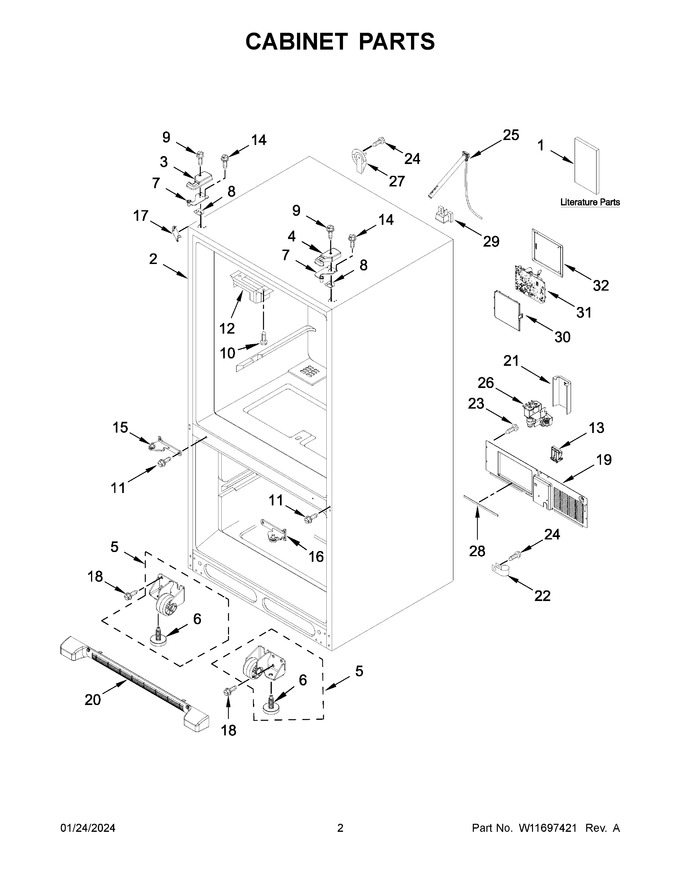

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11580822 | Owners Manual |
|
- | |||||
| 2 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WPW10337634 | Cover, Top Hinge Left Hand (white) (Replaces: W10337634) |
|
Immediately | $ 21.19 | ||||
| 4 | 67005958 | Cover, Top Hinge Right Hand (white) (Replaces: 12962302W) |
|
$ 19.41 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: W11456626) |
|
$ 28.73 | |||||
| 8 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 89.58 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 13.25 | |||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 13 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W10918115 | Hinge, Center Left Hand (white) (Replaces: W10740148) |
|
$ 20.60 | |||||
| 16 | W10918117 | Hinge, Center Right Hand (white) (Replaces: W10740144) |
|
$ 21.41 | |||||
| 17 | 12587703W | Cover, Corner (white) |
|
$ 20.61 | |||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 19 | W10210980 | Cover, Unit |
|
$ 183.19 | |||||
| 20 | WPW10534161 | Assembly, Grille (includes Clips) (white) (Replaces: W10534161) |
|
$ 132.38 | |||||
| 21 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 22 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 23 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.25 | |||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 25 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 82.14 | ||||
| 26 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 106.85 | ||||
| 27 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 28 | W11534847 | Gasket |
|
- | |||||
| 29 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 21.21 | |||||
| 30 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 76.64 | |||||
| 31 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 371.56 | ||||
| 32 | 12961602 | Cover, Control Box |
|
$ 104.57 | |||||
| 1A | W11651386 | Energy Guide |
|
- | |||||
| 1B | W11623340 | Tech Sheet |
|
- | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: W11456625) |
|
Immediately | $ 28.71 | ||||
| 8A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 90.54 |
