SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts

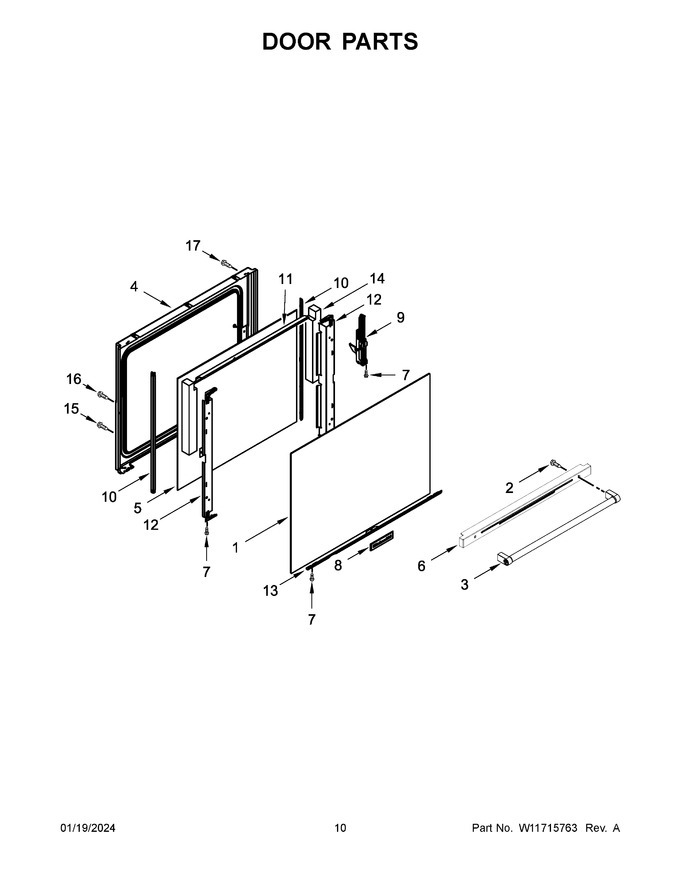

06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10495962		Outer Door Glass Assembly (white)   (Replaces: W10495962)				$ 402.77
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
3	W11104399		Handle Assembly (stainless)   (Replaces: W10551000)				$ 237.48
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 331.51
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 252.42
6	WPW10335331		Trim, Vent (white)   (Replaces: W10335331)			Immediately	$ 125.35
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
8	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
9	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
10	W10334003		Side Trim, Door (white)			Immediately	$ 84.58
11	W10294853		Bracket, Glass Liner			Immediately	$ 237.04
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 133.75
13	WPW10333990		Trim, Bottom Door (white)   (Replaces: W10333990)			Immediately	$ 51.90
14	W11688565		Insulation, Door   (Replaces: W10772958)				$ 27.02
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
16	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
17	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 8.20

    View Diagram in Separate Window       Print Part List
