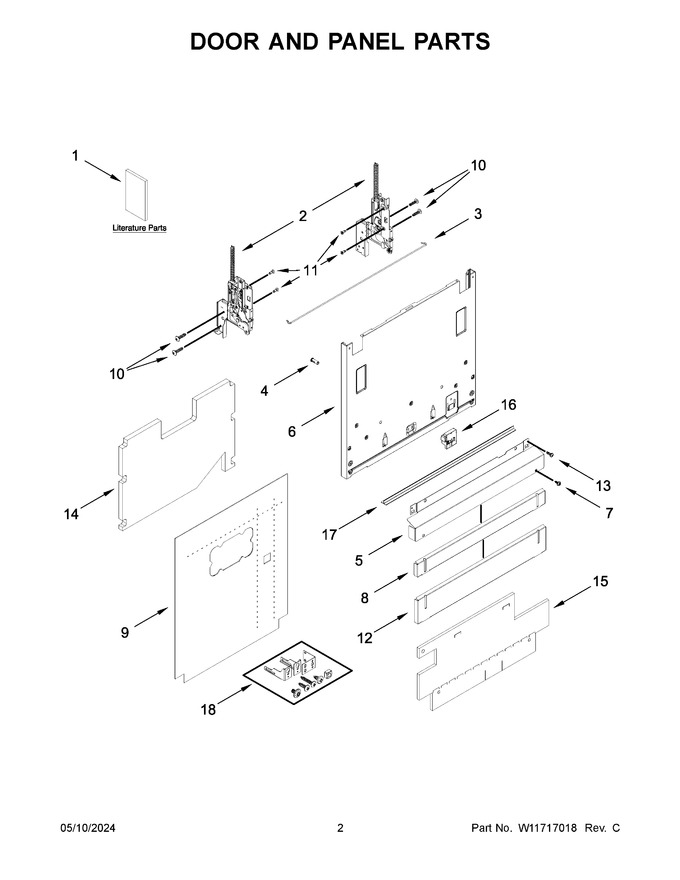

02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Third Level Rack And Track Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11589935		Owners Manual		Appelez-nous	-
2	W11693818		Arm, Hinge (left Hand)   (Replaces: W11631592)				$ 242.96
3	W11698653		Cross Brace, Door   (Replaces: W11126789)		Appelez-nous	-
4	W11699546		Bushing, Door   (Replaces: W10885778)		Appelez-nous	-
5	W11698515		Panel, Main Access (black)   (Replaces: W11625157)				$ 383.25
6	W11693814		Panel, Outer Door (includes 4)   (Replaces: W11524403)			Immediately	$ 255.55
7	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
8	W11698514		Panel, 2" Adjustable (black)   (Replaces: W11625159)			Immediately	$ 151.25
9	W11698654		Insulation, Inner Door   (Replaces: W11564603)				$ 63.12
10	W11698634		Screw   (Replaces: W10942031)		Appelez-nous	-
11	W11698633		Screw   (Replaces: W10941985)		Appelez-nous	-
12	W11690824		Panel, 4" Adjustable (black)   (Replaces: W11625156)				$ 149.34
13	WP302868		Screw   (Replaces: W10942053)			Immediately	$ 8.18
14	W11701325		Insulation, Door   (Replaces: W11564608)		Appelez-nous	-
15	W11701339		Insulation, Bottom   (Replaces: W11564610)		Appelez-nous	-
16	W11690892		Display, Floor   (Replaces: W11540965)			Immediately	$ 217.55
17	W11701340		Gasket, Bottom Door   (Replaces: W11125570)		Appelez-nous	-
18	W11726286		Toe Kick Install Hardware   (Replaces: W11726119)				$ 160.34
1A	W11645480		Energy Guide		Appelez-nous	-
1B	W11589945		Tech Sheet		Appelez-nous	-
2A	W11693819		Arm, Hinge (right Hand)   (Replaces: W11631591)				$ 108.60
