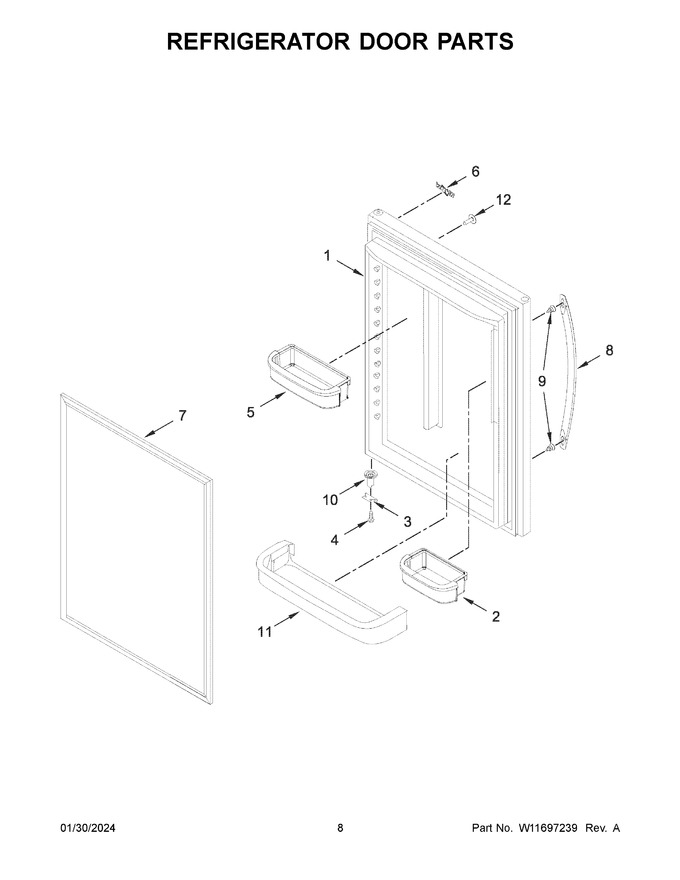

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109402WQ | Door, Refrigerator (white) (Replaces: 13109402W) |
|
$ 1,100.83 | |||||
| 2 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 3 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 7 | WPW10443309 | Gasket, Door (white) (Replaces: W10443309) |
|
Immediately | $ 365.24 | ||||
| 8 | W10830136 | Handle, Door (white) (Replaces: W10686459) |
|
$ 196.17 | |||||
| 9 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 10 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 11 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 104.79 | ||||
| 12 | WP67001130 | Plug, Hole (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 |
