View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

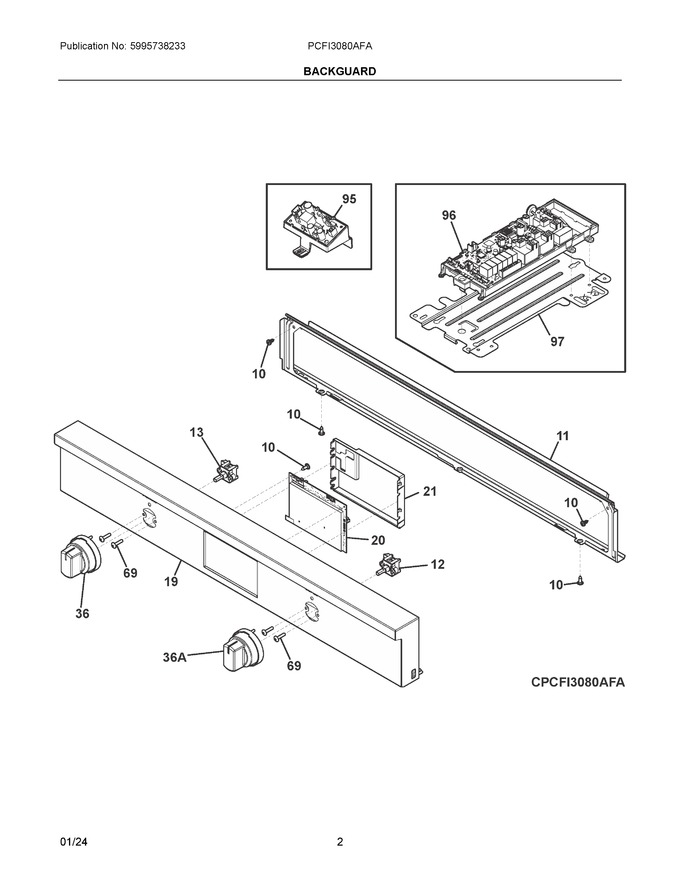

02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304526533 | Screw, T15, 8-18 1/2, Black |
|
$ 2.58 | |||||
| 11 | 5304528295 | Bracket, Support, Front Control |
|
Immediately | $ 28.14 | ||||
| 12 | 5304539060 | Potentiometer, Temp Select, Oven (Replaces: 808843109) |
|
Immediately | $ 75.57 | ||||
| 13 | 5304539138 | Potentiometer, Mode Select, Oven (Replaces: 808843110) |
|
Immediately | $ 81.81 | ||||
| 19 | 5304538922 | Control Panel, Assembly, Stainless (Replaces: 5304528732) |
|
$ 169.70 | |||||
| 20 | 5304538467 | Control Assembly, Oven, Ui630i (Replaces: 5304528737) |
|
Immediately | $ 170.12 | ||||
| 21 | 5304536355 | Cover, Control |
|
$ 11.47 | |||||
| 36 | 5304528448 | Knob, Oven Selector, Stainless |
|
$ 62.08 | |||||
| 69 | 5304528301 | Screw, Truss, 8-32 X 17.65 |
|
$ 4.16 | |||||
| 95 | 5304534730 | Pc Board, Assembly, Backlit Power, W/housing |
|
$ 96.61 | |||||
| 96 | 140171068053 | Pc Board, Ovc Relay (Replaces: 5304535108) |
|
Immediately | $ 141.03 | ||||
| 97 | 5304528373 | Bracket, Ovc Board |
|
Immediately | $ 24.59 | ||||
| 36A | 5304528449 | Knob, Oven Temp, Stainless |
|
Immediately | $ 62.08 | ||||
| NI | 5304536517 | Harness, Backlight |
|
- | |||||
| NI | 5304529016 | Harness, Wiring, Macs Panel, To Ui Board |
|
$ 25.73 | |||||
| NI | 5304538919 | Screw, T20 Washer, 4.5 X 14.5 (Replaces: 5304533472) |
|
- | |||||
| NI | 5304528462 | Harness, Wiring, Potentiometers |
|
$ 188.46 | |||||
| NIA | 5304528293 | Screw, T20, 8-18 X .79 |
|
- |
