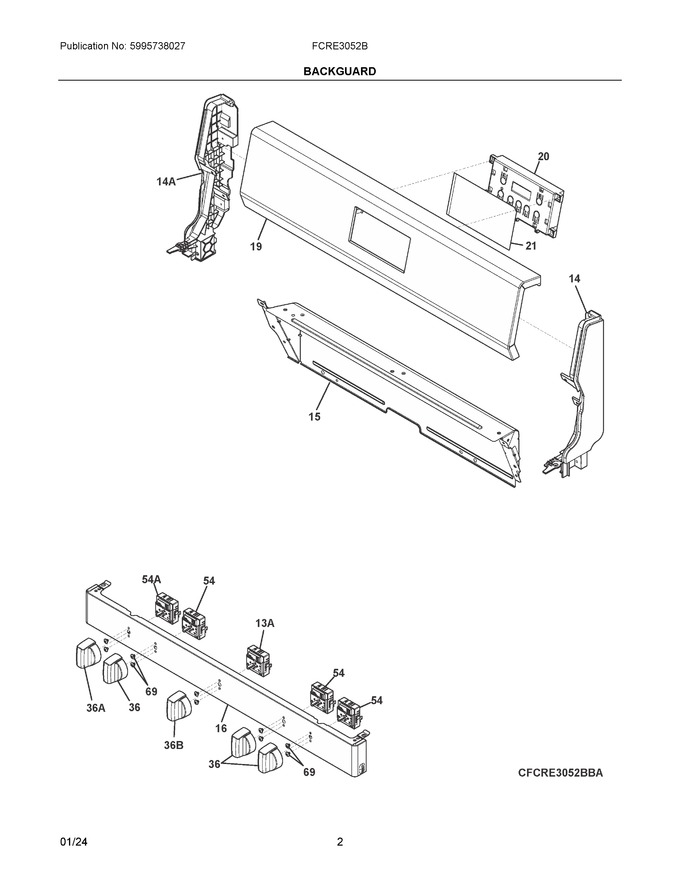

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	5304534817		End Cap, Backguard, White, Rh				$ 74.20
15	5304526437		Shield, Backguard, Inner		Appelez-nous	-
16	5304526628		Panel, Mainfold, White				$ 98.95
19	5304526452		Control Panel, Assembly, Steel/glass, White/black, W/cntl Bracket				$ 81.75
20	5304536331		Controller, Electronic, Squonge			Immediately	$ 116.39
21	5304534804		Overlay, Control, Black				$ 14.33
36	5304526250		Knob, Infinite Switch, White, Single			Immediately	$ 16.63
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304526494		Screw, Truss T-20, 8-32 X 3/16, 137*, Switch Mtg.			Immediately	$ 2.58
13A	5304522964		Switch, Infinite, Warmer			Immediately	$ 65.73
14A	5304534818		End Cap, Backguard, White, Lh				$ 74.20
36A	5304515469		Knob, Infinite Switch, White, Dual			Immediately	$ 19.38
36B	5304521977		Knob, Inf Switch, White, Warm				$ 31.17
54A	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 37.01
NI	5304534814		Harness, Wiring, Energy Regultrs		Appelez-nous	-
NI	5304533495		Screw, 4.2 X 19.1mm, Black, Zinc Plated   (Replaces: 5304533932)		Appelez-nous	-
NI	349479702		Screw, Pt T20, 4 X 10, Black				$ 2.54
NI	5304533830		Screw, T20, 4.2 X 13mm, Black, Zinc Plated		Appelez-nous	-
NI	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
NI	5304526234		Screw, M4, 2 X 10, Sheet Metal, Black				$ 3.37
