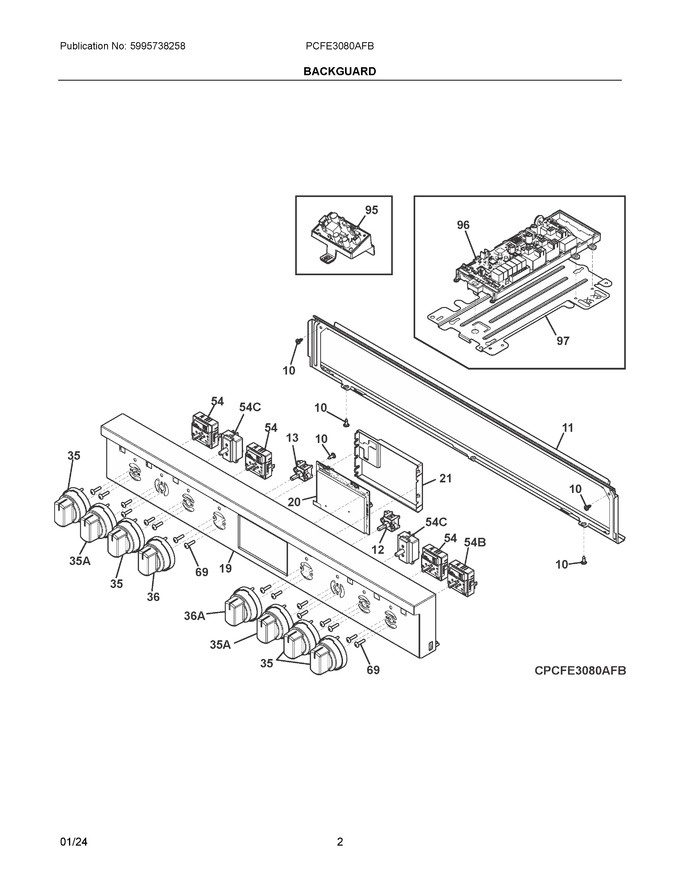

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304526533		Screw, T15, 8-18 1/2, Black				$ 2.58
11	5304528295		Bracket, Support, Front Control			Immediately	$ 28.14
12	5304539060		Potentiometer, Temp Select, Oven   (Replaces: 808843109)			Immediately	$ 75.57
13	5304539138		Potentiometer, Mode Select, Oven   (Replaces: 808843110)			Immediately	$ 81.81
19	5304528731		Control Panel, Assembly, Stainless		Appelez-nous	-
20	5304538608		Control Assembly, Oven, Ui630e   (Replaces: 5304528736)			Immediately	$ 214.87
21	5304536355		Cover, Control				$ 11.47
35	5304528720		Knob, Infinite Switch, Stainless, 0 Deg. Flat				$ 65.60
36	5304528448		Knob, Oven Selector, Stainless				$ 62.08
54	5304522966		Switch, Infinite, Single			Immediately	$ 86.79
69	5304528301		Screw, Truss, 8-32 X 17.65				$ 4.16
95	5304534730		Pc Board, Assembly, Backlit Power, W/housing				$ 96.61
96	140171068053		Pc Board, Ovc Relay   (Replaces: 5304535108)			Immediately	$ 141.03
97	5304528373		Bracket, Ovc Board			Immediately	$ 24.59
35A	5304528722		Knob, Infinite Switch, Stainless, 90 Deg. Flat				$ 62.08
36A	5304528449		Knob, Oven Temp, Stainless			Immediately	$ 62.08
54B	140173680012		Switch, Infinite, Turbo Boil   (Replaces: 5304522965)			Immediately	$ 38.18
54C	5304537897		Switch-infinite, Warmer Drw/zone   (Replaces: 316471601)			Immediately	$ 40.12
NI	5304536356		Harness, Wiring, Backlit Knobs				$ 128.28
NI	5304529016		Harness, Wiring, Macs Panel, To Ui Board				$ 25.73
NI	5304528462		Harness, Wiring, Potentiometers				$ 188.46
NI	5304526232		Screw, T-20 St, 8-24 X 3/8		Appelez-nous	-
NI	5304538919		Screw, T20 Washer, 4.5 X 14.5   (Replaces: 5304533472)		Appelez-nous	-
NI	5304536348		Harness, Wiring, Energy, Regulator				$ 139.80
NIA	5304528293		Screw, T20, 8-18 X .79		Appelez-nous	-
