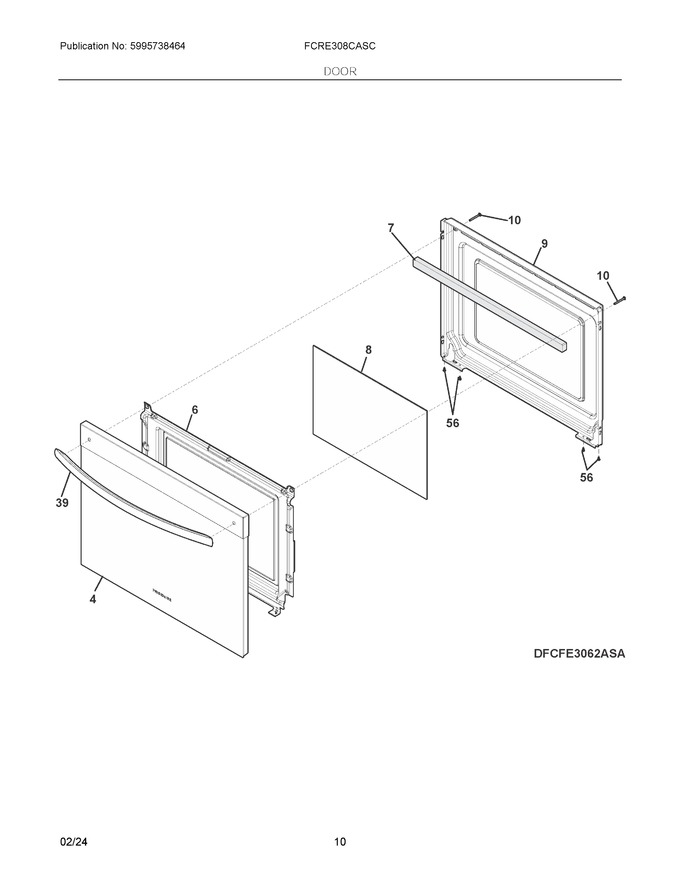

05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304534354 | Door Assembly, Outer, Glass, Stainless, W/cap-badge |
|
Immediately | $ 149.93 | ||||
| 6 | 5304528103 | Shield, Wool |
|
$ 99.80 | |||||
| 7 | 140299178024 | Insulation, Door, Top (Replaces: 5304528501) |
|
- | |||||
| 8 | 5304528194 | Glass, Door, Inner, Pxl Shr |
|
Immediately | $ 115.22 | ||||
| 9 | 5304533466 | Liner, Oven Door, Midnight Black |
|
Immediately | $ 130.38 | ||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
Immediately | $ 2.53 | ||||
| 21 | 5304528104 | Bracket, Glass Pack, Horizontal |
|
- | |||||
| 22 | 5304528105 | Bracket, Glass Pack, Vertical |
|
$ 11.39 | |||||
| 39 | 140067504096 | Handle-door Ss 30in 2022, 39 (Replaces: 5304535236) |
|
$ 53.48 | |||||
| 56 | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.37 | |||||
| 56A | 5304526532 | Screw, M4.2 X 9.5, Black |
|
$ 3.37 | |||||
| 7A | 5304528500 | Insulation, Door, Bottom |
|
$ 15.12 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
