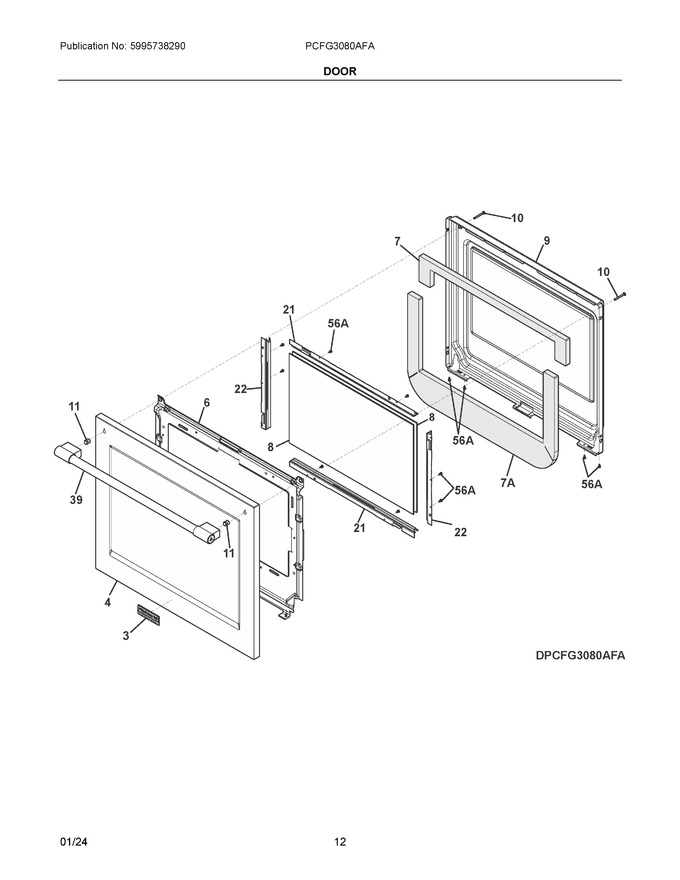

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 809108704 | Badge, Frigidaire Pro |
|
Immediately | $ 48.20 | ||||
| 4 | 5304537565 | Door Assembly, Outer, Steel/glass, Stainless (Replaces: 5304528495) |
|
$ 230.42 | |||||
| 6 | 5304528106 | Shield, Wool |
|
Immediately | $ 108.93 | ||||
| 7 | 140293846022 | Insulation, Door, Top (Replaces: 5304526656) |
|
$ 7.94 | |||||
| 8 | 5304526387 | Glass, Door, Shr, Inner, 2 Side Coating |
|
Immediately | $ 184.54 | ||||
| 9 | 5304528160 | Liner, Oven Door, Midnight Black |
|
$ 156.14 | |||||
| 10 | 316433305 | Screw, Trus T20, 10-44 X 1.870, Black, Handle Mtg. |
|
Immediately | $ 2.53 | ||||
| 11 | 5304494420 | Nut, Hour Glass, Handle Mtg. |
|
$ 14.18 | |||||
| 21 | 5304526285 | Bracket, Glass Pack, Horizontal |
|
$ 10.11 | |||||
| 22 | 5304526284 | Bracket, Glass Pack, Verticle |
|
Immediately | $ 13.48 | ||||
| 39 | 5304538412 | Handle Assembly, Stainless (Replaces: 5304536352) |
|
Immediately | $ 151.48 | ||||
| 56A | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| 7A | 5304528502 | Insulation, Door, Bottom |
|
Immediately | $ 18.69 | ||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.95 |
