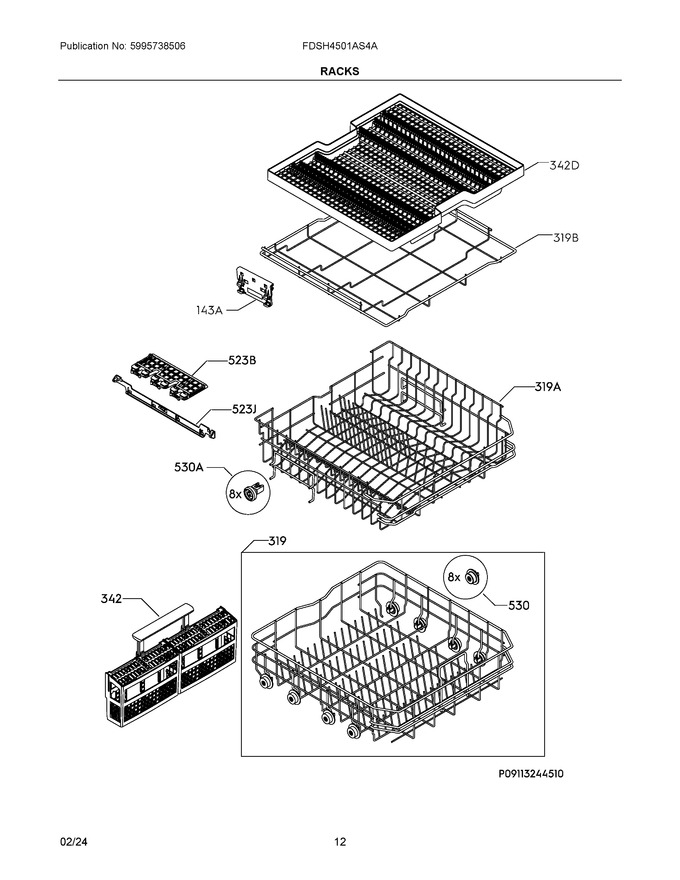

07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 319 | A06629617 | Rack Assembly, Lower, Silver (Replaces: A06629604) |
|
$ 210.32 | |||||
| 342 | A00173209 | Cutlery Basket, Assembly, Grey (Replaces: A00173206) |
|
$ 118.50 | |||||
| 530 | 405507213 | Rack Roller, Kit, Lower |
|
$ 50.51 | |||||
| 143A | A00008104 | Holder, Basket, Top |
|
Immediately | $ 32.99 | ||||
| 319A | A00239829 | Rack Assembly, Upper, Silver |
|
$ 124.22 | |||||
| 319B | A00004305 | Rack, Top, Silver |
|
$ 403.67 | |||||
| 342D | A02899201 | Basket, Cuttlery, Grey, Shelf |
|
$ 178.63 | |||||
| 523B | 808124102 | Shelf, Cup, Grey |
|
$ 190.00 | |||||
| 523J | 808138102 | Holder, Cup Shelf |
|
$ 66.15 | |||||
| 530A | 5028696700 | Rack Roller, Kit, Dark Grey, Upper Basket, Incl 8 Pcs |
|
$ 33.04 |
