SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Door And Panel Parts

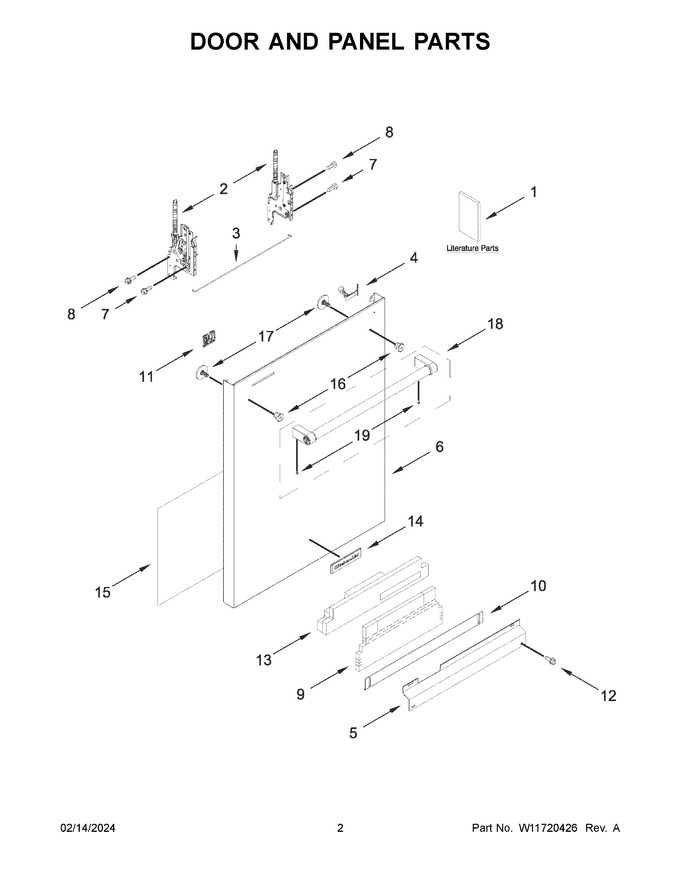

02 - Door And Panel Parts

Diagram for 03 - Control Panel And Inner Door Parts
03 - Control Panel And Inner Door Parts

Diagram for 04 - Tub And Frame Parts
04 - Tub And Frame Parts

Diagram for 05 - Pump, Washarm And Motor Parts
05 - Pump, Washarm And Motor Parts

Diagram for 06 - Upper Wash And Rinse Parts
06 - Upper Wash And Rinse Parts

Diagram for 07 - Upper Rack And Track Parts
07 - Upper Rack And Track Parts

Diagram for 08 - Lower Rack Parts
08 - Lower Rack Parts

Diagram for 09 - Third Level Rack And Track Parts
09 - Third Level Rack And Track Parts

Diagram for 10 - Optional Parts (not Included)
10 - Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11323304 Owners Manual Appelez-nous -
2 W11766666 Arm, Hinge (left Hand)   (Replaces: W11662392) In-Stock Immediately $ 59.16

3 W11377160 Cross Brace, Door Special Order $ 33.36

4 W11102920 Light Pipe Special Order $ 68.17

5 W11545318 Access Panel (black)   (Replaces: W11108979) In-Stock Immediately $ 27.90

6 W11462453 Panel, Front (includes 4, 11 & 14) (black)   (Replaces: W11233280) Special Order $ 395.50

7 W11676450 Screw   (Replaces: 3400000) Special Order $ 14.76

8 WPW10309090 Screw   (Replaces: W11364953) In-Stock Immediately $ 76.86

9 W11573704 Insulation, Single Layer   (Replaces: W11038694) In-Stock Immediately $ 29.98

10 W11579528 Toe Panel (black)   (Replaces: W11467733) In-Stock Immediately $ 32.90

11 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

12 W11551775 Screw, Black   (Replaces: W11438978) In-Stock Immediately $ 15.43

13 W11573700 Insulation, Multi-layer   (Replaces: W10919858) In-Stock Immediately $ 44.89

14 W10909682 Nameplate   (Replaces: W10518673) In-Stock Immediately $ 76.20

15 W11778318 Insulation, Front Panel   (Replaces: W10919859) Special Order $ 23.86

16 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

17 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

18 W10708004 Handle Assembly (stainless)   (Replaces: W11417401) In-Stock Immediately $ 141.35

19 W10917698 Set Screw   (Replaces: W10687133) In-Stock Immediately $ 7.55

10A W11467726 Toe Panel (white) Special Order $ 35.77

12A W11632695 Screw, White   (Replaces: W11438977) In-Stock Immediately $ 14.73

1A W11650509 Energy Guide Appelez-nous -
1B W11366144 Tech Sheet Appelez-nous -
2A W11766665 Arm, Hinge (right Hand)   (Replaces: W11662370) In-Stock Immediately $ 59.16

6A W11461681 Panel, Front (includes 4, 11 & 14) (white)   (Replaces: W11233281) Special Order $ 395.59

6B W11416371 Panel, Front (includes 4, 11 & 14) (stainless)   (Replaces: W11233283) Special Order $ 407.49

6C W11416372 Panel, Front (includes 4, 11 & 14) (black Stainless)   (Replaces: W11233284) Special Order $ 418.33


    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for KDTE204KWH3
