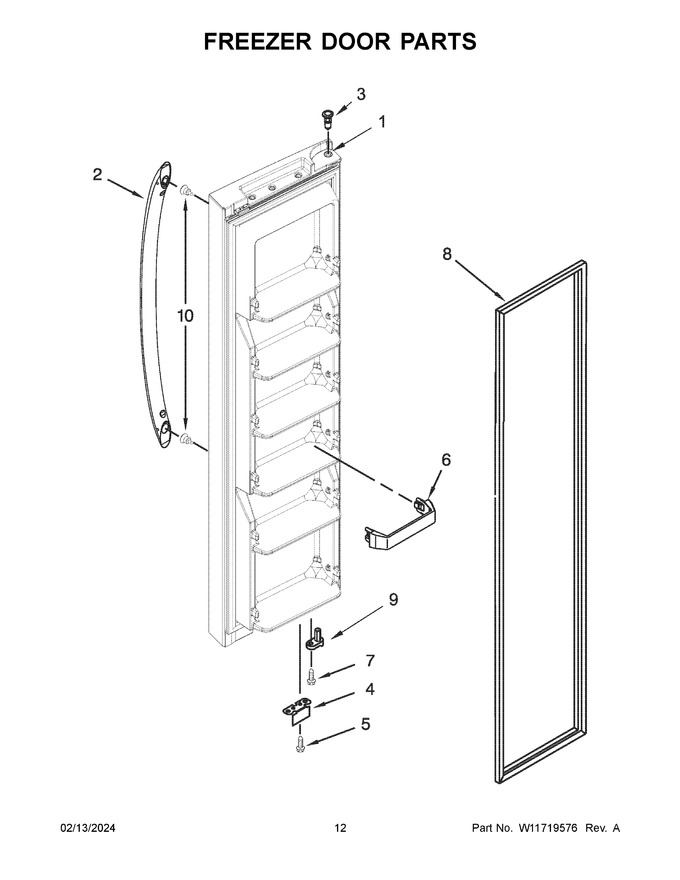

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW11258471 | Door, Freezer (includes Item 8) (stainless) (Replaces: W11258471) |
|
$ 1,168.02 | |||||
| 2 | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 | ||||
| 3 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 4 | W11557261 | Bracket, Door Stop (Replaces: W11481757) |
|
Immediately | $ 18.67 | ||||
| 5 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 6 | WP2309717 | Trim, Door (Replaces: 2309717) |
|
$ 58.64 | |||||
| 7 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 8.18 | ||||
| 8 | W10136733 | Gasket, Door (grey) (Replaces: W10911461) |
|
$ 358.98 | |||||
| 9 | W11661926 | Thimble, Cam (Replaces: W10900532) |
|
$ 14.02 | |||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 |
