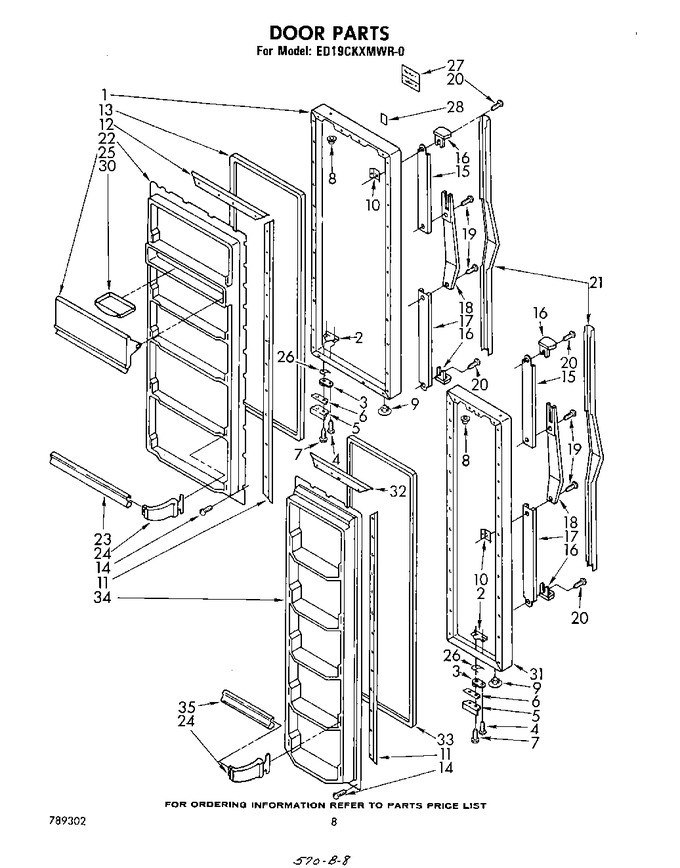

SELECT A DIAGRAM

02 - Cabinet


03 - Air Flow And Control


04 - Liner


05 - Door


06 - Unit , Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100365		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	936632		Exterior Door (refrigerator) (white)		Appelez-nous	-
1	936633		Exterior Door (refrigerator) (coffee)		Appelez-nous	-
1	936634		Exterior Door (refrigerator) (golden Harvest)		Appelez-nous	-
1	936636		Exterior Door (refrigerator) (almond)		Appelez-nous	-
1	1100364		Refrigerator, Door Panel (toast)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim, Door Stop		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge Sleeve		Appelez-nous	-
9	534927		Hole Plug		Appelez-nous	-
10	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
11	836120		Retainer, Gasket Side		Appelez-nous	-
12	836121		Retainer, Gasket Top & Bottom		Appelez-nous	-
13	2188404A		Door Gasket, Magnetic (for Platinum Model Only)   (Replaces: 939565)				$ 269.26
13	2188404A		Door, Gasket Magnetic   (Replaces: 943220)				$ 269.26
14	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
14	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
15	987008		Insert Retainer (top)		Appelez-nous	-
16	987006		End Cap		Appelez-nous	-
17	987010		Insert Retainer (bottom)		Appelez-nous	-
18	987009		Handle		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
20	488928		Screw, 10-32 X 5/8		Appelez-nous	-
21	848330		Insert, Handle		Appelez-nous	-
22	981428		Interior Door, Panel (for Platinum Model Only)		Appelez-nous	-
22	943827		Interior Door, Panel		Appelez-nous	-
23	985494		Trim, Door Shelf		Appelez-nous	-
24	WP849996		Support, Trim End   (Replaces: 943824)				$ 7.95
24	WP849996		Support, Trim End (for Platinum Model Only)   (Replaces: 849996)				$ 7.95
25	935322		Door, Utility		Appelez-nous	-
26	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
27	945118		Insert, Nameplate		Appelez-nous	-
28	991259		Tape Strip		Appelez-nous	-
30	520747		Tray, Butter		Appelez-nous	-
31	1100366		Freezer, Door Panel (toast)		Appelez-nous	-
31	936639		Exterior Door Freezer (white)		Appelez-nous	-
31	936640		Exterior Door Freezer (coffee)		Appelez-nous	-
31	936641		Exterior Door Freezer (golden Harvest)		Appelez-nous	-
31	936643		Exterior Door Freezer (almond)		Appelez-nous	-
31	1100367		Freezer, Door Panel (platinum)		Appelez-nous	-
32	836122		Retainer Gasket Top & Bottom Freezer		Appelez-nous	-
33	2188405A		Door Gasket, Magnetic   (Replaces: 943221)				$ 368.63
33	2188405A		Door Gasket, Magnetic (for Platinum Model Only)   (Replaces: 939566)				$ 368.63
34	943828		Interior Door Panel		Appelez-nous	-
34	937457		Interior Door Panel (for Platinum Model Only)		Appelez-nous	-
35	935361		Trim Door Shelf		Appelez-nous	-
