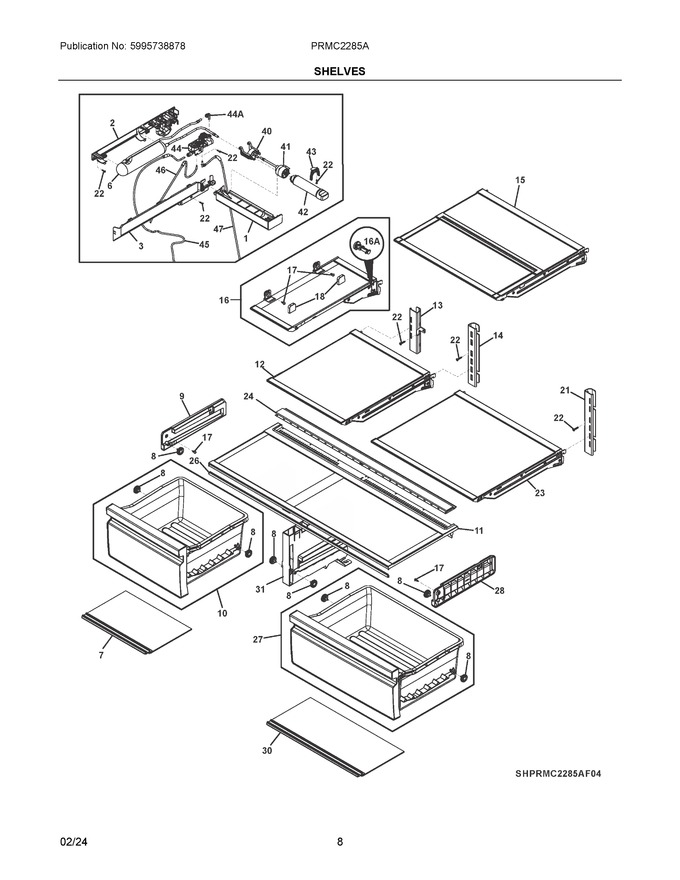

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533262		Cover, Water Filter, Grey				$ 31.54
2	5304529601		Support, Water Valve, & Tank				$ 24.43
3	5304523035		Cover, Water Tank		Appelez-nous	-
6	5304523037		Tank, Water, Disp Reservoir				$ 199.76
7	5304523038		Cover, Mullion Storage, Glass, Lh				$ 113.74
8	5304519124		Roller, Crisper Glide				$ 18.71
9	5304519125		Rail, Crisper, Lh Side		Appelez-nous	-
10	5304527986		Drawer Assembly, Crisper, Lh, W/rollers				$ 102.97
11	5304531895		Cover Assembly, Crisper, W/glass				$ 113.36
12	5304523041		Shelf Assembly, Cantilever, Glass, Lh				$ 316.83
13	5304523042		Bracket, Cantilever Shlf, Grey, Lh		Appelez-nous	-
14	5304523043		Bracket, Cantilever Shlf, Grey, Center		Appelez-nous	-
15	5304523044		Shelf Assembly, Cantilever, Glass, Upper				$ 276.60
16	5304523045		Shelf Assembly, Flip Up, Glass, Lh				$ 352.95
17	241641505		Screw, Hilo Phil Pn, .5", White		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 9.10
21	5304523046		Bracket, Cantilever Shlf, Grey, Rh		Appelez-nous	-
22	811949503		Screw, Truss, 4.2 X 13				$ 3.37
23	5304523047		Shelf Assembly, Cantilever, Glass, Rh				$ 312.62
24	5304523048		Housing Assembly, Auto Humidity, W/membrane				$ 73.31
26	5304519140		Gasket, Crisper Cover				$ 26.64
27	5304527987		Drawer Assembly, Crisper, Rh, W/rollers				$ 111.64
28	5304519142		Rail, Crisper, Rh Side				$ 21.91
30	5304523050		Cover, Mullion Storage, Glass, Rh				$ 125.76
31	5304532661		Divider, Crisper Cover				$ 67.41
40	5304531743		Guide, Filter Manifold				$ 4.39
41	5304533202		Manifold, Water Filter, W/water Line, To Main Valve			Immediately	$ 50.61
42	EPTWFU01		Cs6 Wter Fltr, Frig Ps Ultra Ii			Immediately	$ 75.59
43	5304519148		Holder, Water Filter				$ 12.05
44	5304523052		Water Valve, Assembly, Triple			Immediately	$ 262.73
45	5304524353		Tubing, Valve, To Door Hinge			Immediately	$ 40.06
46	5304527422		Tubing, Valve, To Ff Ice Maker			Immediately	$ 18.03
47	5304523685		Tubing, Valve, To Fz Ice Maker				$ 61.68
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 28.82
NI	5304529552		Seal, Foam, 37 X 70mm		Appelez-nous	-
NI	5304529553		Seal, Foam, Inlet Tube		Appelez-nous	-
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
NIA	5304533519		Elbow, Tube, Water Tank				$ 6.51
