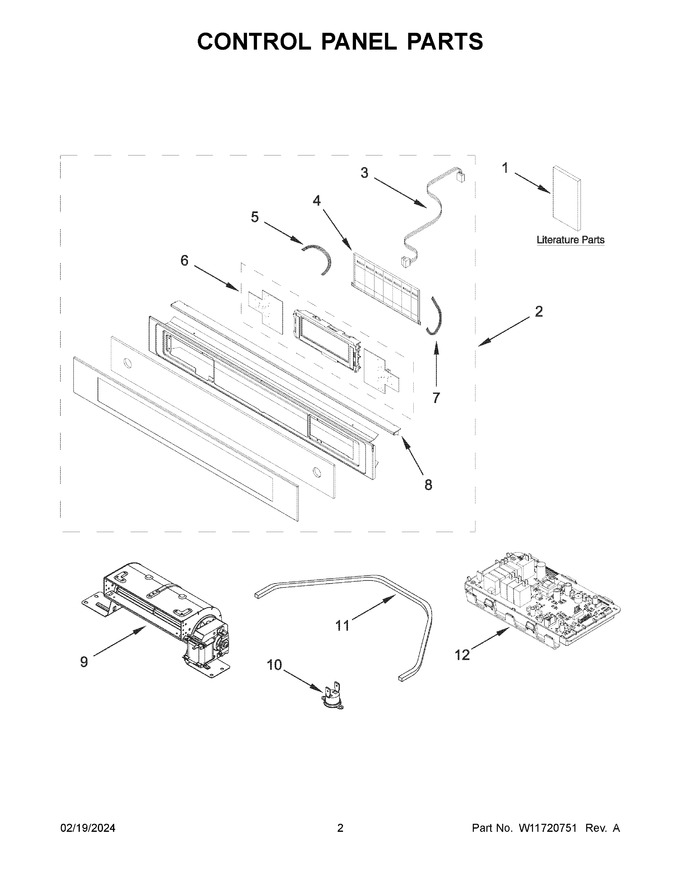

02 - Control Panel Parts
03 - Oven Parts
04 - Internal Oven Parts
05 - Oven Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11608852 | Instructions, Installation |
|
- | |||||
| 2 | W11701964 | Assembly, Control Panel (Replaces: W11701934) |
|
$ 1,046.70 | |||||
| 3 | W11348035 | Harness, Touch Display |
|
Immediately | $ 70.72 | ||||
| 4 | W11348132 | Cover, Control |
|
- | |||||
| 5 | W11348036 | Wiring, Right Control |
|
Immediately | $ 72.57 | ||||
| 6 | W11594229 | Pcba, User Interface (Replaces: W11594177) |
|
$ 426.47 | |||||
| 7 | W11348033 | Wiring, Left Control |
|
- | |||||
| 8 | W11236834 | Trim, Top (Replaces: W10914742) |
|
$ 98.61 | |||||
| 9 | W11347859 | Blower, Cooling Fan |
|
Immediately | $ 410.97 | ||||
| 10 | W11259047 | Thermostat, 165 Celcius (with Bracket) (Replaces: W10490220) |
|
Immediately | $ 197.77 | ||||
| 11 | W10519009 | Gasket, Blower Motor |
|
- | |||||
| 12 | W11683043 | Pcba, Appliance Control Unit (Replaces: W11681217) |
|
$ 444.34 | |||||
| 1A | W11609950 | Manual, Owner's |
|
- | |||||
| 1B | W11686738 | Sheet, Tech |
|
- |
