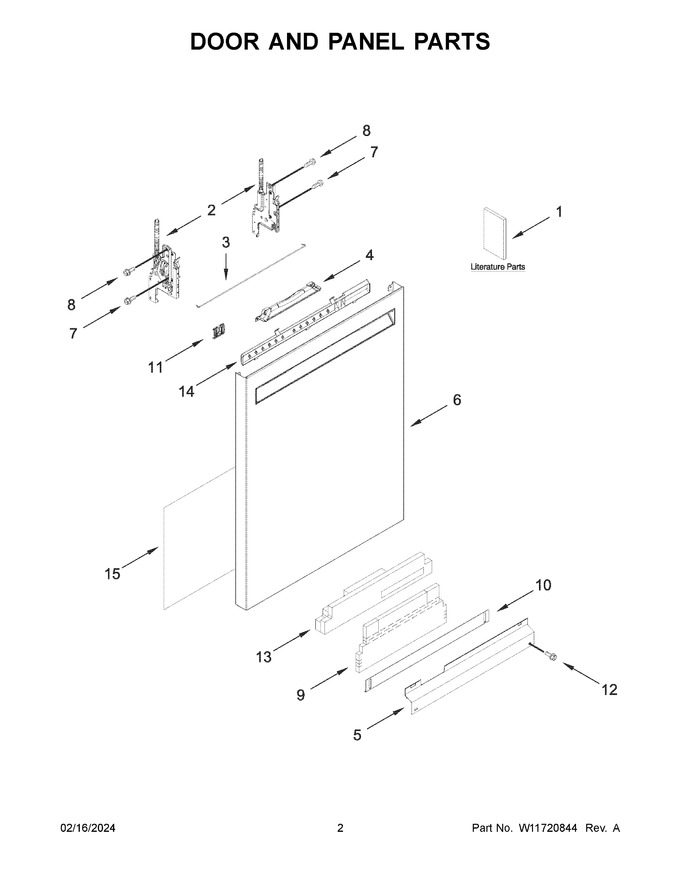

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11323304		Owners Manual		Appelez-nous	-
2	W11766666		Arm, Hinge (left Hand)   (Replaces: W11662392)			Immediately	$ 59.16
3	W11377160		Cross Brace, Door				$ 33.36
4	W11242122		Handle, Pocket (black)			Immediately	$ 221.64
5	W11545318		Access Panel (black)   (Replaces: W11108979)			Immediately	$ 27.90
6	W11672177		Panel, Front (includes 4, 11, 14 & 16) (black)   (Replaces: W11594467)				$ 541.25
7	W11676450		Screw   (Replaces: 3400000)				$ 14.76
8	WPW10309090		Screw   (Replaces: W11364953)			Immediately	$ 76.86
9	W11573704		Insulation, Single Layer   (Replaces: W11038694)			Immediately	$ 29.98
10	W11579528		Toe Panel (black)   (Replaces: W11467733)			Immediately	$ 32.90
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	W11551775		Screw, Black   (Replaces: W11438978)			Immediately	$ 15.43
13	W11573700		Insulation, Multi-layer   (Replaces: W10919858)			Immediately	$ 44.89
14	W11731850		Cover, Console   (Replaces: W11242133)			Immediately	$ 41.38
15	W11778318		Insulation, Front Panel   (Replaces: W10919859)				$ 23.86
10A	W11467726		Toe Panel (white)				$ 35.77
12A	W11632695		Screw, White   (Replaces: W11438977)			Immediately	$ 14.73
1A	W11650509		Energy Guide		Appelez-nous	-
1B	W11366144		Tech Sheet		Appelez-nous	-
2A	W11766665		Arm, Hinge (right Hand)   (Replaces: W11662370)			Immediately	$ 59.16
4A	W11242123		Handle, Pocket (white)				$ 39.87
5A	W11110746		Access Panel (white)				$ 129.96
6A	W11672201		Panel, Front (includes 4, 11, 14 & 16) (white)   (Replaces: W11594468)				$ 544.05
6B	W11625194		Panel, Front (includes 4, 11, 14 & 16) (stainless)   (Replaces: W11554522)			Immediately	$ 540.04
6C	W11625196		Panel, Front (includes 4, 11, 14 & 16) (black Stainless)   (Replaces: W11554523)			Immediately	$ 547.32
