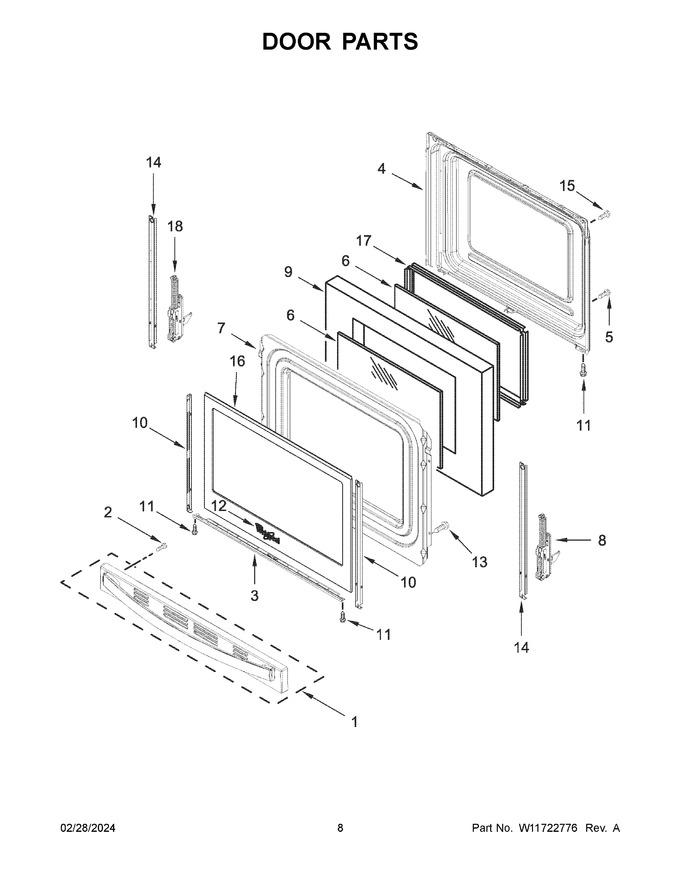

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11730234		Handle And Vent Assembly (stainless (includes Standoff))   (Replaces: W11353054)			Immediately	$ 203.05
2	W10896982		Screw   (Replaces: W10465158)				$ 8.40
3	W11569689		Trim, Lower Door (black)   (Replaces: W11444043)			Immediately	$ 60.08
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
8	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
9	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
10	W10761018		Trim, Door (black (left))   (Replaces: W10746436)			Immediately	$ 53.77
11	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
12	W11178521		Badge (badge)   (Replaces: W10884775)			Immediately	$ 63.13
13	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
16	W11741357		Glass Assembly, Outer Door (black)   (Replaces: W11624777)				$ 181.56
17	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
18	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
10A	W10761014		Trim, Door (black (right))   (Replaces: W10746435)			Immediately	$ 72.96
