Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11323304 Owners Manual Appelez-nous -
2 W11766666 Arm, Hinge (left Hand)   (Replaces: W11662392) In-Stock Immediately $ 59.16

3 W11377160 Cross Brace, Door Special Order $ 33.36

4 WPW10612925 Badge   (Replaces: W10612925) In-Stock Immediately $ 42.36

5 W11545318 Access Panel (black)   (Replaces: W11108979) In-Stock Immediately $ 27.90

6 W11659649 Panel, Front (includes Ui Insert, 4,11,13,14 &15) (black)   (Replaces: W11594024) In-Stock Immediately $ 456.83

7 W11676450 Screw   (Replaces: 3400000) Special Order $ 14.76

8 WPW10309090 Screw   (Replaces: W11364953) In-Stock Immediately $ 76.86

9 W11573704 Insulation, Single Layer   (Replaces: W11038694) In-Stock Immediately $ 29.98

10 W11579528 Toe Panel (black)   (Replaces: W11467733) In-Stock Immediately $ 32.90

11 W10692757 Barrel Nut, Front Panel Special Order $ 16.01

12 W11551775 Screw, Black   (Replaces: W11438978) In-Stock Immediately $ 15.43

13 W11242122 Handle, Pocket (black) In-Stock Immediately $ 221.64

14 W11806851 Housing, Ui   (Replaces: W11491721) Special Order $ 298.65

10A W11467726 Toe Panel (white) Special Order $ 35.77

12A W11632695 Screw, White   (Replaces: W11438977) In-Stock Immediately $ 14.73

13A W11242123 Handle, Pocket (white) Special Order $ 39.87

13B W11242124 Handle (grey) Special Order $ 39.91

1A W11650513 Energy Guide Appelez-nous -
1B W11366143 Tech Sheet Appelez-nous -
2A W11766665 Arm, Hinge (right Hand)   (Replaces: W11662370) In-Stock Immediately $ 59.16

5A W11110746 Access Panel (white) Special Order $ 129.96

6A W11659650 Panel, Front (includes Ui Insert, 4,11,13,14 &15) (white)   (Replaces: W11594025) Special Order $ 470.52

6B W11659651 Panel, Front (includes Ui Insert, 4,11,13,14 &15) (stainless)   (Replaces: W11594026) In-Stock Immediately $ 530.01


    View Diagram in Separate Window     Print Icon   Print Part List

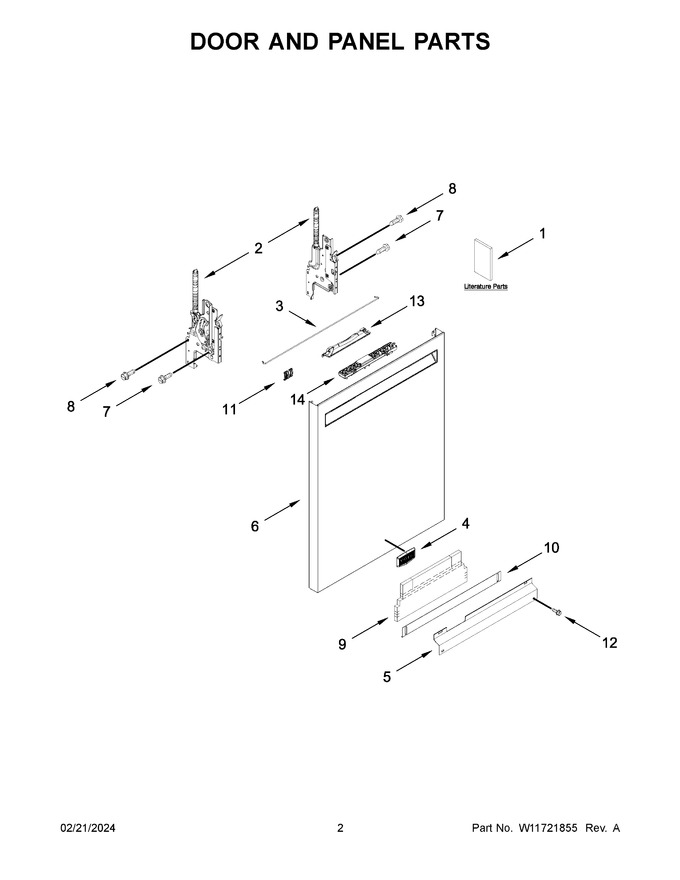

Diagram for MDB4949SKB3
