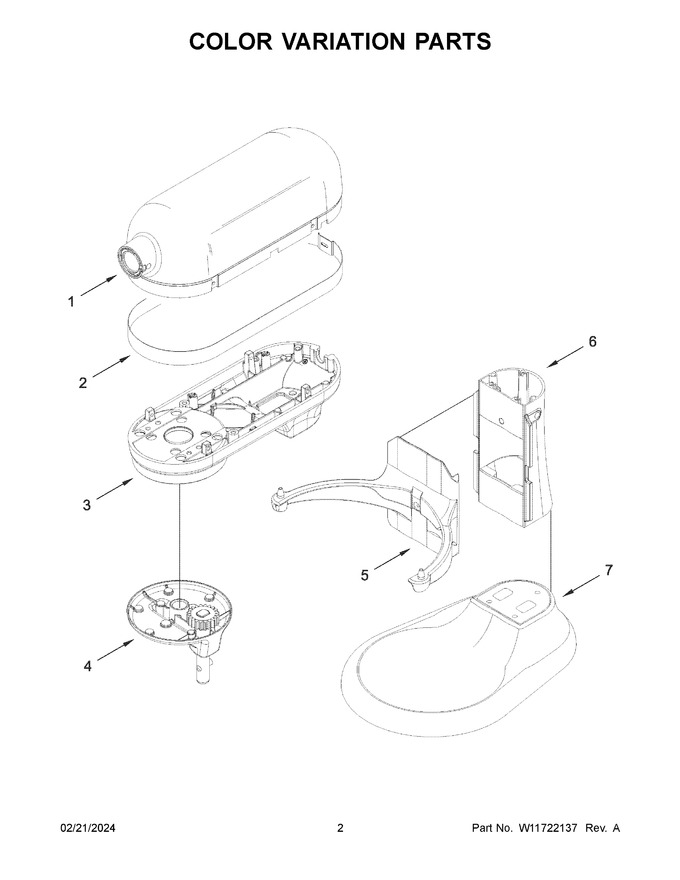

02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit


04 - Base And Pedestal Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10403016		Motor Housing (candy Apple Red)   (Replaces: W10403016)				$ 65.02
2	W11649200		Trim Band (bright Aluminum)   (Replaces: W11420352)		Appelez-nous	-
3	W11520129		Lower Gearcase (candy Apple Red)		Appelez-nous	-
4	W11595416		Planetary (silent Silver)				$ 85.73
5	WPW10402998		Bowl Support And Pins (candy Apple Red)   (Replaces: W10402998)				$ 98.26
6	9703673		Column And Pins (white)				$ 81.26
6	WPW10402992		Column And Pins (candy Apple Red)   (Replaces: W10402992)				$ 109.87
7	WPW10402986		Base And Foot Assembly (candy Apple Red)   (Replaces: W10402986)				$ 111.33
1A	9703311		Motor Housing (white)				$ 88.20
3A	W11520144		Lower Gearcase (white)		Appelez-nous	-
5A	9703674		Bowl Support And Pins (white)				$ 74.91
7A	9703690		Base & Foot Assembly (white)		Appelez-nous	-
