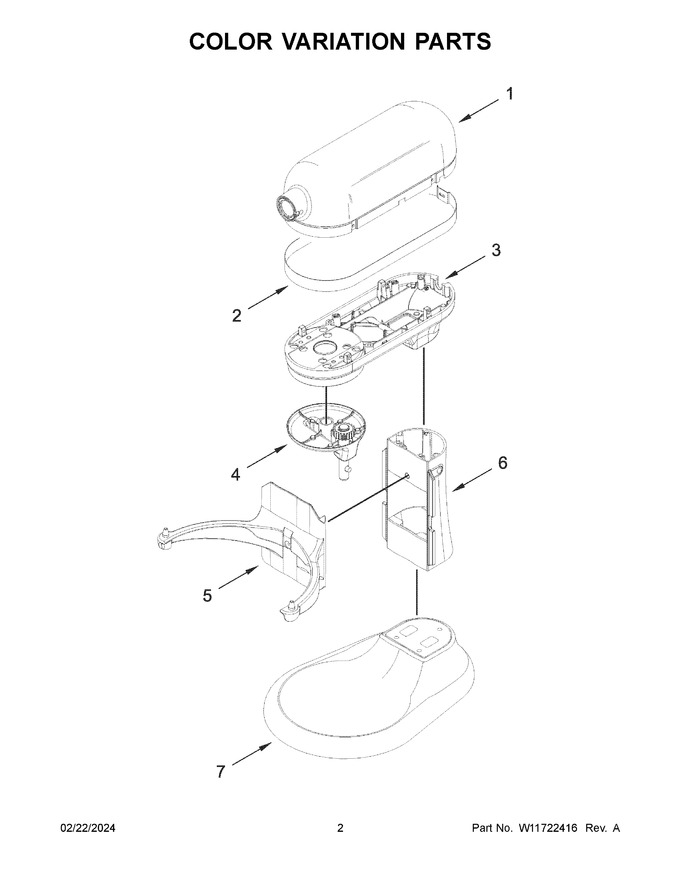

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11123176 | Motor Housing (black Matte) |
|
- | |||||
| 2 | W11420348 | Trim Band (light Brushed Aluminum) |
|
- | |||||
| 3 | W11520136 | Lower Gearcase (black Matte) |
|
- | |||||
| 4 | W11513622 | Planetary (black Matte) |
|
- | |||||
| 5 | W11328664 | Bowl Support And Pins (black Matte) |
|
- | |||||
| 6 | W11123140 | Column And Pins (black Matte) |
|
- | |||||
| 7 | W11123131 | Base & Foot Assembly (black Matte) |
|
- | |||||
| 1A | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 1B | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1C | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1D | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 3A | W11520143 | Lower Gearcase (contour Silver) |
|
- | |||||
| 3B | W11520142 | Lower Gearcase (empire Red) |
|
- | |||||
| 3C | W11421149 | Lower Gearcase (onyx Black) |
|
- | |||||
| 3D | W11520144 | Lower Gearcase (white) |
|
- | |||||
| 4A | W11513269 | Planetary (contour Silver) |
|
$ 75.33 | |||||
| 4B | W11513270 | Planetary (empire Red) |
|
$ 77.95 | |||||
| 4C | W11513268 | Planetary (onyx Black) |
|
- | |||||
| 4D | W11513267 | Planetary (white) |
|
- | |||||
| 5A | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 5B | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5C | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5D | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 6A | W10328003 | Column And Pins (contour Silver) |
|
- | |||||
| 6B | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6C | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6D | 9703673 | Column And Pins (white) |
|
$ 81.26 | |||||
| 7A | W10328017 | Base & Foot Assembly (contour Silver) |
|
- | |||||
| 7B | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7C | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7D | 9703690 | Base & Foot Assembly (white) |
|
- |
