SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Inner Door Parts


04 - Tub And Frame Parts


05 - Pump, Washarm And Motor Parts


06 - Upper Wash And Rinse Parts


07 - Upper Rack And Track Parts


08 - Lower Rack Parts


09 - Optional Parts (not Included)

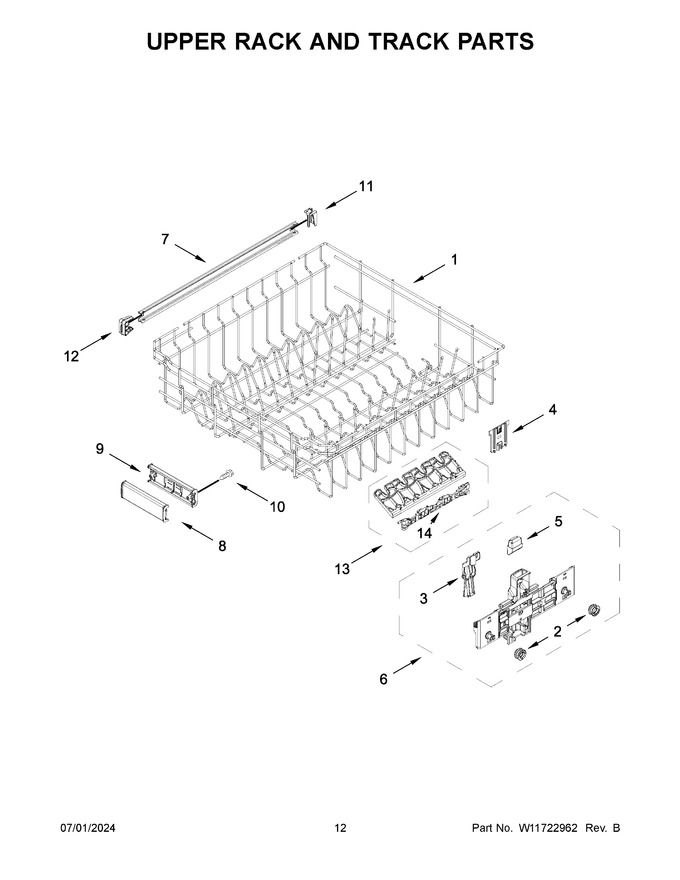

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11678956		Dishrack, Upper   (Replaces: W10847875)				$ 195.83
2	W11568789		Wheel   (Replaces: W11048219)			Immediately	$ 15.92
3	W11180178		Leveler, Adjuster Arm				$ 76.16
4	W11580020		Clip, Adjuster Arm   (Replaces: W11180605)			Immediately	$ 62.65
5	W11267701		Button, Adjuster Arm		Appelez-nous	-
6	W11268104		Adjustment Assembly (left Hand)				$ 114.50
7	W11561204		Track, Dishrack   (Replaces: W11441109)			Immediately	$ 38.56
8	W11268683		Handle, Dishrack Front		Appelez-nous	-
9	W11291785		Handle, Dishrack Rear		Appelez-nous	-
10	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
11	W11579392		Track Stop, Rear   (Replaces: W11084872)			Immediately	$ 20.41
12	W11545307		Track Stop, Front   (Replaces: W11084874)			Immediately	$ 15.45
13	W11129799		Cupshelf Assembly			Immediately	$ 95.26
14	W11129797		Clip, Cupshelf				$ 21.13
6A	W11268100		Adjustment Assembly (right Hand)				$ 110.64

    View Diagram in Separate Window       Print Part List
