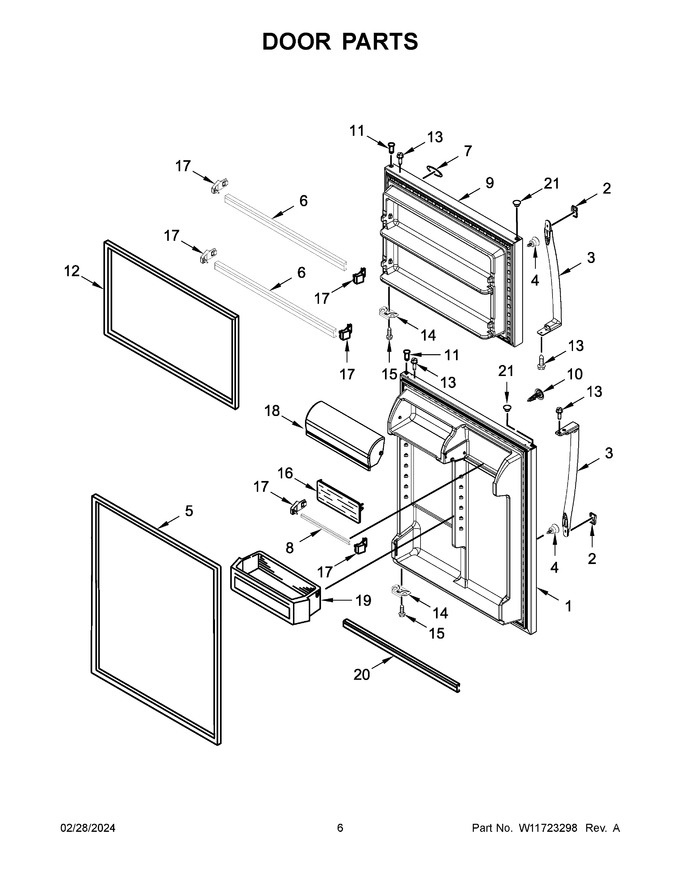

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Refrigerator Door (includes Door Gasket) (white)   (Replaces: W10599404)				$ 758.35
2	WPW10672338		Handle, Trim (white)   (Replaces: W10672338)			Immediately	$ 29.91
3	WPW10672333		Handle, Door (white)   (Replaces: W10672333)			Immediately	$ 230.40
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
5	W10860480		Gasket, Door (white)   (Replaces: W11406596)				$ 309.74
6	W11596065		Trim, Door   (Replaces: W11230196)				$ 98.26
7	W11178521		Badge (badge)   (Replaces: W10884775)			Immediately	$ 63.13
8	W11678258		Trim, Door   (Replaces: W10720455)				$ 88.14
9	W11023679		Freezer Door (includes Door Gasket) (white)   (Replaces: W10599407)				$ 758.35
10	W10830984		Plug, Hole (white)   (Replaces: W10663736)				$ 8.38
11	WP2314293		Thimble   (Replaces: 2314293)				$ 7.55
12	W10741118		Gasket, Door (white)   (Replaces: W11406593)				$ 332.03
13	WP8281206		Screw   (Replaces: 8281206)				$ 8.37
14	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
15	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
16	WP2188236		Door, Flip Up   (Replaces: 2188236)				$ 64.38
17	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
18	W11617783		Door, Compartment   (Replaces: W11455931)				$ 76.28
19	W10803530		Bin, Door   (Replaces: W10582649)				$ 75.88
20	W11606660		Trim, Door   (Replaces: W11230195)			Immediately	$ 32.61
21	WP2212648		Plug, Hinge (white)   (Replaces: 2212648)			Immediately	$ 8.19
10A	W10830983		Plug, Hole (black)   (Replaces: W10663737)				$ 19.54
10B	W10830981		Plug, Hole (biscuit)   (Replaces: W10663738)		Appelez-nous	-
10C	W10830982		Plug, Hole (grey)   (Replaces: W10663739)			Immediately	$ 19.54
12A	2177310		Gasket, Door (black)   (Replaces: W11406601)				$ 335.31
12B	2159060		Gasket, Door (beige)   (Replaces: W11406605)				$ 336.01
12C	W10249196		Gasket, Door (grey)   (Replaces: W11406598)			Immediately	$ 279.10
1A	W11023687		Refrigerator Door (includes Door Gasket) (black)   (Replaces: W10599396)				$ 805.44
1B	W11023688		Refrigerator Door (includes Door Gasket) (biscuit)   (Replaces: W10679333)		Appelez-nous	-
1C	LW10642551		Refrigerator Door (includes Door Gasket) (stainless)   (Replaces: W10642551)		Appelez-nous	-
21A	WP2212651		Plug, Hinge (black)   (Replaces: 2212651)				$ 24.21
21B	WP2212649		Plug, Hinge (biscuit)   (Replaces: 2212649)				$ 7.99
21C	WP2254517		Plug, Hinge (grey)   (Replaces: 2254517)			Immediately	$ 24.34
2A	W10838316		Handle, Trim (black)   (Replaces: W10672339)				$ 31.08
2B	W10672341		Handle, Trim (biscuit)		Appelez-nous	-
2C	W11519504		Handle, Trim (gray)   (Replaces: W11374428)			Immediately	$ 50.43
3A	WPW10672334		Handle, Door (black)   (Replaces: W10672334)				$ 227.34
3B	W10859918		Handle, Door (biscuit)   (Replaces: W10672336)		Appelez-nous	-
3C	W10806512		Handle, Door (stainless)   (Replaces: W10653470)			Immediately	$ 248.91
5A	2177311		Gasket, Door (black)   (Replaces: W11406604)				$ 330.95
5B	2159061		Gasket, Door (beige)   (Replaces: W11406608)			Immediately	$ 183.67
5C	W10249195		Gasket, Door (grey)   (Replaces: W11406600)				$ 335.80
9A	W11023687		Freezer Door (includes Door Gasket) (black)   (Replaces: W10599399)				$ 805.44
9B	W11023688		Freezer Door (includes Door Gasket) (biscuit)   (Replaces: W10679336)		Appelez-nous	-
9C	LW10642554		Freezer Door (includes Door Gasket) (stainless)   (Replaces: W10642554)		Appelez-nous	-
NI	W10676240		Door Reversal Kit Stainless Model				$ 112.54
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11416038		Door Reversal Kit, White Model   (Replaces: W10662124)				$ 83.24
NI	W10691128		Door Reversal Kit, Biscuit Model		Appelez-nous	-
NI	W11415957		Door Reversal Kit, Black Model   (Replaces: W10676239)				$ 80.44
