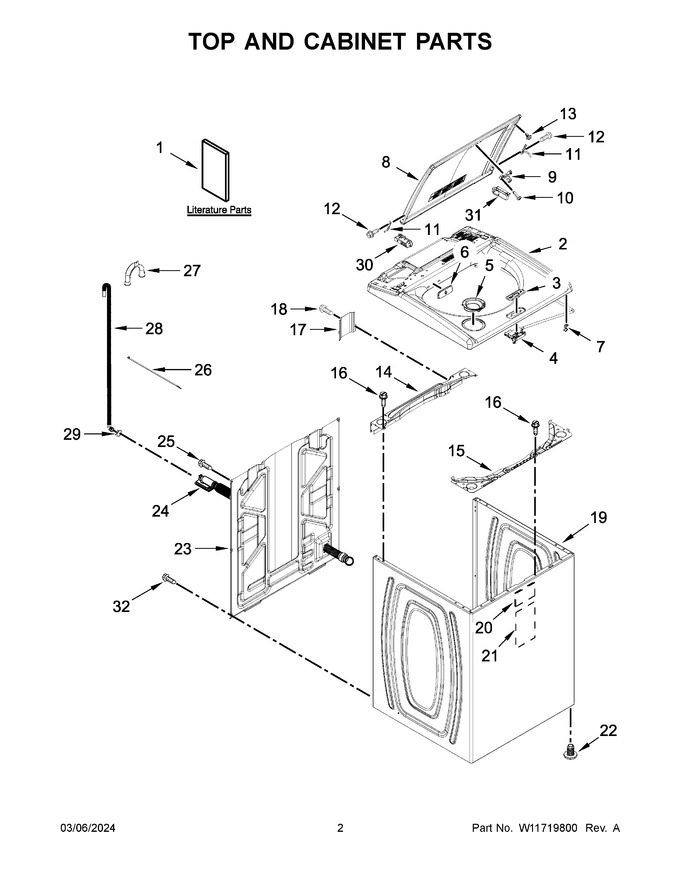

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11647197 | Owners Manual |
|
- | |||||
| 2 | W11513251 | Top (white) (Replaces: W11391547) |
|
$ 389.07 | |||||
| 3 | W11643703 | Bezel, Lid Lock (Replaces: W11403468) |
|
Immediately | $ 30.27 | ||||
| 4 | W11703384 | Latch, Lid Lock Assembly (Replaces: W11414742) |
|
- | |||||
| 5 | W11234069 | Bezel, Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 104.24 | |||||
| 6 | W11396263 | Bezel, Faucet |
|
$ 29.99 | |||||
| 7 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 8 | W11513256 | Lid (white) (Replaces: W11383034) |
|
Immediately | $ 392.52 | ||||
| 9 | W11513250 | Strike, Lid Lock (white) (Replaces: W11391550) |
|
Immediately | $ 12.94 | ||||
| 10 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.55 | ||||
| 11 | WP91770 | Hinge, Lid (left) (Replaces: 91770) |
|
$ 28.82 | |||||
| 12 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 7.55 | ||||
| 13 | 8572266 | Bumper, Door |
|
Immediately | $ 11.73 | ||||
| 14 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 15 | W11381327 | Channel, Top Front |
|
Immediately | $ 78.50 | ||||
| 16 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 17 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 18 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 19 | W10676680 | Cabinet (white) |
|
$ 406.86 | |||||
| 20 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 21 | W11611669 | Absorber, Impact (Replaces: W10834527) |
|
$ 23.28 | |||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W11179235) |
|
Immediately | $ 14.24 | ||||
| 23 | W11486091 | Panel, Rear (Replaces: W11417173) |
|
Immediately | $ 327.72 | ||||
| 24 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 35.78 | ||||
| 25 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 26 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 28 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 29 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 30 | W11654274 | Hinge, Spacer Left (Replaces: W11434928) |
|
$ 18.11 | |||||
| 31 | W11654272 | Hinge, Spacer Right (Replaces: W11434930) |
|
$ 18.11 | |||||
| 32 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 11A | W11513247 | Hinge, Lid (right) (Replaces: W11429864) |
|
$ 10.49 | |||||
| 1A | W11647206 | Quick Start Guide |
|
- | |||||
| 1B | W11428598 | Tech Sheet |
|
- |
