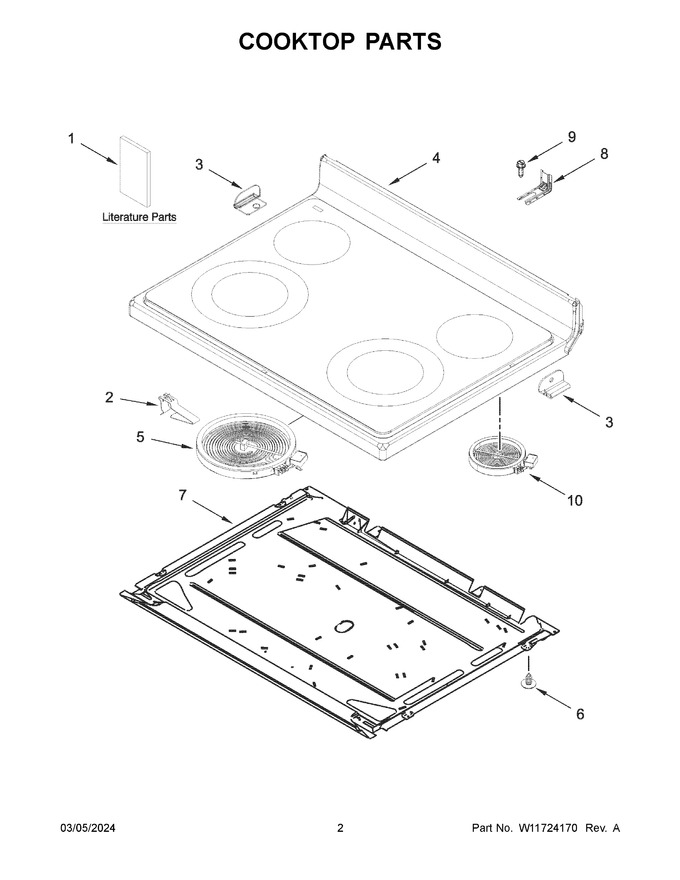

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618614		Quick Start Guide		Appelez-nous	-
2	W11663556		Spring, Element   (Replaces: W11600012)			Immediately	$ 14.84
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11719704		Cooktop (black)   (Replaces: W11629153)			Immediately	$ 482.76
5	W11517959		Element (3000 And 1400w) (left Front And Right Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11171119		Element (1200w) (left Rear And Right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
1A	W11617173		Owners Manual		Appelez-nous	-
1B	W11626731		Tech, Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W11714298		Cooktop (white)   (Replaces: W11629154)				$ 483.07
NI	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 39.67
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11707257		Main, Harness   (Replaces: W11334458)				$ 300.17
